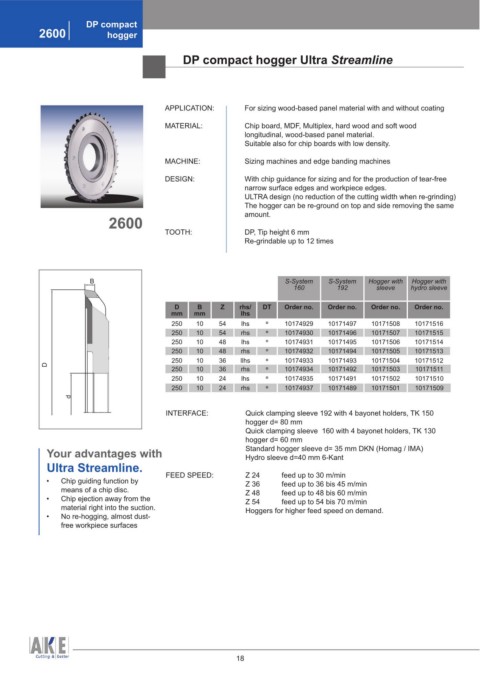

DP compact
2600 hogger

DP compact hogger Ultra Streamline

APPLICATION: For sizing wood-based panel material with and without coating

MATERIAL: Chip board, MDF, Multiplex, hard wood and soft wood
longitudinal, wood-based panel material.
Suitable also for chip boards with low density.

MACHINE: Sizing machines and edge banding machines

DESIGN: With chip guidance for sizing and for the production of tear-free
narrow surface edges and workpiece edges.
ULTRA design (no reduction of the cutting width when re-grinding)
The hogger can be re-ground on top and side removing the same
2600 amount.
TOOTH: DP, Tip height 6 mm
Re-grindable up to 12 times

B S-System S-System Hogger with Hogger with
160 192 sleeve hydro sleeve

D B Z rhs/ DT Order no. Order no. Order no. Order no.
mm mm lhs
250 10 54 lhs ° 10174929 10171497 10171508 10171516
250 10 54 rhs ° 10174930 10171496 10171507 10171515
250 10 48 lhs ° 10174931 10171495 10171506 10171514
250 10 48 rhs ° 10174932 10171494 10171505 10171513
250 10 36 llhs ° 10174933 10171493 10171504 10171512
D
250 10 36 rhs ° 10174934 10171492 10171503 10171511
250 10 24 lhs ° 10174935 10171491 10171502 10171510
250 10 24 rhs ° 10174937 10171489 10171501 10171509
d
INTERFACE: Quick clamping sleeve 192 with 4 bayonet holders, TK 150
hogger d= 80 mm
Quick clamping sleeve 160 with 4 bayonet holders, TK 130
hogger d= 60 mm
Your advantages with Standard hogger sleeve d= 35 mm DKN (Homag / IMA)
Hydro sleeve d=40 mm 6-Kant
Ultra Streamline.

• Chip guiding function by FEED SPEED: Z 24 feed up to 30 m/min

feed up to 36 bis 45 m/min

Z 36
means of a chip disc. Z 48 feed up to 48 bis 60 m/min
• Chip ejection away from the Z 54 feed up to 54 bis 70 m/min
material right into the suction. Hoggers for higher feed speed on demand.
• No re-hogging, almost dust-
free workpiece surfaces
