Edge trimming
cutter 35010

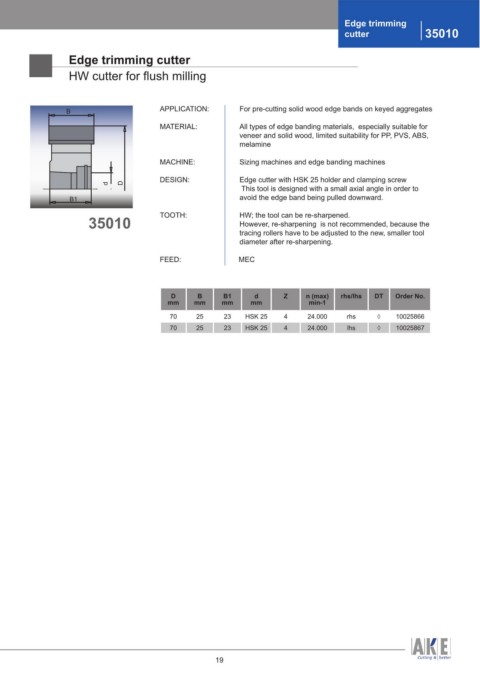

Edge trimming cutter
HW cutter for flush milling

B APPLICATION: For pre-cutting solid wood edge bands on keyed aggregates

MATERIAL: All types of edge banding materials, especially suitable for
veneer and solid wood, limited suitability for PP, PVS, ABS,
melamine
MACHINE: Sizing machines and edge banding machines

DESIGN: Edge cutter with HSK 25 holder and clamping screw
d D
This tool is designed with a small axial angle in order to
B1 avoid the edge band being pulled downward.

35010 TOOTH: HW; the tool can be re-sharpened.

However, re-sharpening is not recommended, because the
tracing rollers have to be adjusted to the new, smaller tool
diameter after re-sharpening.

FEED: MEC

D B B1 d Z n (max) rhs/lhs DT Order No.
mm mm mm mm min-1
70 25 23 HSK 25 4 24.000 rhs ◊ 10025866
70 25 23 HSK 25 4 24.000 lhs ◊ 10025867
