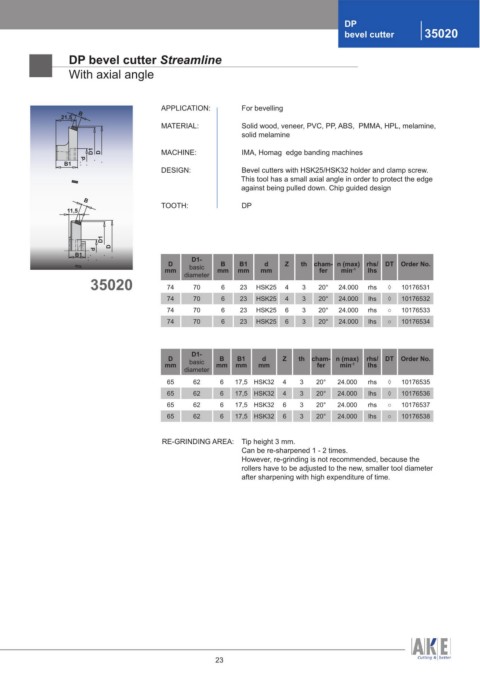

Page 23 - Furniture production_EN_2015

DP
bevel cutter 35020

DP multiple radii trimming cutter DP bevel cutter Streamline
For through-feed machines With axial angle

APPLICATION: For bevelling
B
21,5
MATERIAL: Solid wood, veneer, PVC, PP, ABS, PMMA, HPL, melamine,
solid melamine

D1 D MACHINE: IMA, Homag edge banding machines
d
B1
DESIGN: Bevel cutters with HSK25/HSK32 holder and clamp screw.
This tool has a small axial angle in order to protect the edge
against being pulled down. Chip guided design

B
TOOTH: DP
11,5

D1
D
d
B1 D1-
D B B1 d Z th cham- n (max) rhs/ DT Order No.
D B b d Z th R cham- n (max) rhs/ DT Order No. mm basic mm mm mm fer min -1 lhs
mm mm mm mm fer min -1 lhs diameter
90 56 17 HSK25 6 2,5 1,0 / 2,0 /3,0 15° 24.000 rhs ○ 10029541 35020 74 70 6 23 HSK25 4 3 20° 24.000 rhs ◊ 10176531
90 56 17 HSK25 6 2,5 1,0 / 2,0 /3,0 15° 24.000 lhs ○ 10029540 74 70 6 23 HSK25 4 3 20° 24.000 lhs ◊ 10176532
90 56 17 HSK25 6 2,5 2,0 /3,0 20° 24.000 rhs ○ 10039580 74 70 6 23 HSK25 6 3 20° 24.000 rhs ○ 10176533
90 56 17 HSK25 6 2,5 2,0 /3,0 20° 24.000 lhs ○ 10039581 74 70 6 23 HSK25 6 3 20° 24.000 lhs ○ 10176534

D1-
D B B1 d Z th cham- n (max) rhs/ DT Order No.
mm basic mm mm mm fer min -1 lhs
diameter
65 62 6 17,5 HSK32 4 3 20° 24.000 rhs ◊ 10176535
65 62 6 17,5 HSK32 4 3 20° 24.000 lhs ◊ 10176536
65 62 6 17,5 HSK32 6 3 20° 24.000 rhs ○ 10176537
65 62 6 17,5 HSK32 6 3 20° 24.000 lhs ○ 10176538

RE-GRINDING AREA: Tip height 3 mm.
Can be re-sharpened 1 - 2 times.
However, re-grinding is not recommended, because the
rollers have to be adjusted to the new, smaller tool diameter
after sharpening with high expenditure of time.

23
