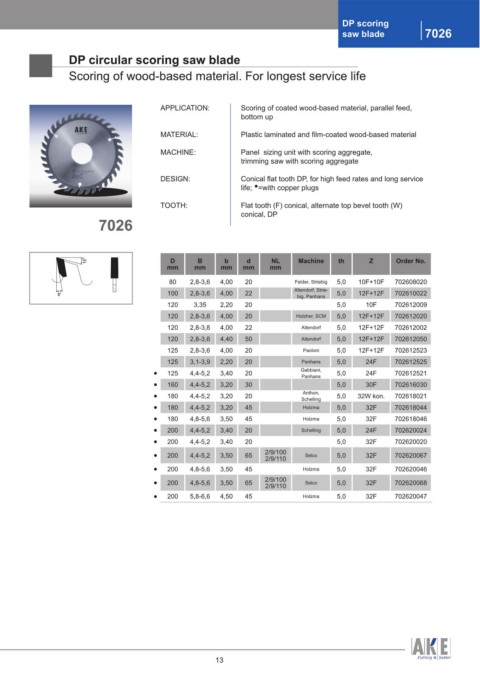

Page 13 - Furniture production_EN_2015

DP scoring
saw blade 7026

DP circular scoring saw blade
Scoring of wood-based material. For longest service life

APPLICATION: Scoring of coated wood-based material, parallel feed,
bottom up

MATERIAL: Plastic laminated and film-coated wood-based material

MACHINE: Panel sizing unit with scoring aggregate,
trimming saw with scoring aggregate

DESIGN: Conical flat tooth DP, for high feed rates and long service
life; •=with copper plugs

TOOTH: Flat tooth (F) conical, alternate top bevel tooth (W)
conical, DP
7026

15° D B b d NL Machine th Z Order No.
mm mm mm mm mm
80 2,8-3,6 4,00 20 Felder, Striebig 5,0 10F+10F 702608020
8° 100 2,8-3,6 4,00 22 Altendorf, Strie- 5,0 12F+12F 702610022
big, Panhans
120 3,35 2,20 20 5,0 10F 702612009
120 2,8-3,6 4,00 20 Holzher, SCM 5,0 12F+12F 702612020
120 2,8-3,8 4,00 22 Altendorf 5,0 12F+12F 702612002
120 2,8-3,6 4,40 50 Altendorf 5,0 12F+12F 702612050
125 2,8-3,6 4,00 20 Paoloni 5,0 12F+12F 702612523
125 3,1-3,9 2,20 20 Panhans 5,0 24F 702612525
• 125 4,4-5,2 3,40 20 Gabbiani, 5,0 24F 702612521
Panhans
• 160 4,4-5,2 3,20 30 5,0 30F 702616030
• 180 4,4-5,2 3,20 20 Schelling 5,0 32W kon. 702618021
Anthon,
• 180 4,4-5,2 3,20 45 Holzma 5,0 32F 702618044
• 180 4,8-5,6 3,50 45 Holzma 5,0 32F 702618046
• 200 4,4-5,2 3,40 20 Schelling 5,0 24F 702620024
• 200 4,4-5,2 3,40 20 5,0 32F 702620020

• 200 4,4-5,2 3,50 65 2/9/100 Selco 5,0 32F 702620067
2/9/110
• 200 4,8-5,6 3,50 45 Holzma 5,0 32F 702620046
• 200 4,8-5,6 3,50 65 2/9/100 Selco 5,0 32F 702620068
2/9/110
• 200 5,8-6,6 4,50 45 Holzma 5,0 32F 702620047
