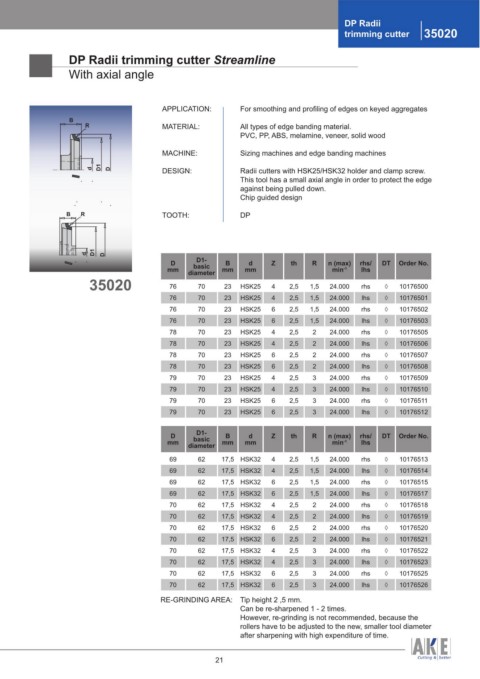

DP Radii
trimming cutter 35020

DP trimming cutter Streamline DP Radii trimming cutter Streamline
With axial angle With axial angle

APPLICATION: For smoothing and profiling of edges on keyed aggregates
B
. R MATERIAL: All types of edge banding material.
PVC, PP, ABS, melamine, veneer, solid wood

MACHINE: Sizing machines and edge banding machines
D1
d D DESIGN: Radii cutters with HSK25/HSK32 holder and clamp screw.
This tool has a small axial angle in order to protect the edge
against being pulled down.
Chip guided design

B .R TOOTH: DP

d D1 D
D D1- B d Z th R n (max) rhs/ DT Order No.
basic
mm diameter mm mm min -1 lhs
35020 76 70 23 HSK25 4 2,5 1,5 24.000 rhs ◊ 10176500

76 70 23 HSK25 4 2,5 1,5 24.000 lhs ◊ 10176501
76 70 23 HSK25 6 2,5 1,5 24.000 rhs ◊ 10176502
76 70 23 HSK25 6 2,5 1,5 24.000 lhs ◊ 10176503
78 70 23 HSK25 4 2,5 2 24.000 rhs ◊ 10176505
78 70 23 HSK25 4 2,5 2 24.000 lhs ◊ 10176506
78 70 23 HSK25 6 2,5 2 24.000 rhs ◊ 10176507
78 70 23 HSK25 6 2,5 2 24.000 lhs ◊ 10176508
79 70 23 HSK25 4 2,5 3 24.000 rhs ◊ 10176509
79 70 23 HSK25 4 2,5 3 24.000 lhs ◊ 10176510
79 70 23 HSK25 6 2,5 3 24.000 rhs ◊ 10176511
79 70 23 HSK25 6 2,5 3 24.000 lhs ◊ 10176512

D D1- B d Z th R n (max) rhs/ DT Order No.
basic
mm diameter mm mm min -1 lhs
69 62 17,5 HSK32 4 2,5 1,5 24.000 rhs ◊ 10176513
69 62 17,5 HSK32 4 2,5 1,5 24.000 lhs ◊ 10176514
69 62 17,5 HSK32 6 2,5 1,5 24.000 rhs ◊ 10176515
69 62 17,5 HSK32 6 2,5 1,5 24.000 lhs ◊ 10176517
70 62 17,5 HSK32 4 2,5 2 24.000 rhs ◊ 10176518
70 62 17,5 HSK32 4 2,5 2 24.000 lhs ◊ 10176519
70 62 17,5 HSK32 6 2,5 2 24.000 rhs ◊ 10176520
70 62 17,5 HSK32 6 2,5 2 24.000 lhs ◊ 10176521
70 62 17,5 HSK32 4 2,5 3 24.000 rhs ◊ 10176522
70 62 17,5 HSK32 4 2,5 3 24.000 lhs ◊ 10176523
70 62 17,5 HSK32 6 2,5 3 24.000 rhs ◊ 10176525
70 62 17,5 HSK32 6 2,5 3 24.000 lhs ◊ 10176526
RE-GRINDING AREA: Tip height 2 ,5 mm.
Can be re-sharpened 1 - 2 times.
However, re-grinding is not recommended, because the
rollers have to be adjusted to the new, smaller tool diameter
after sharpening with high expenditure of time.
