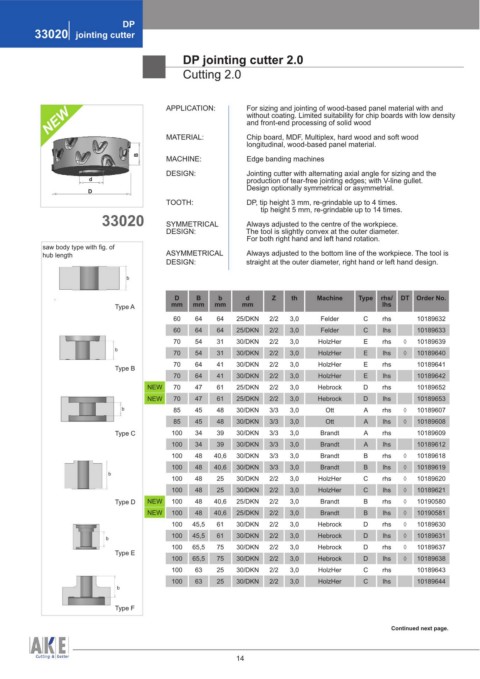

Page 14 - Furniture production_EN_2015

DP
33020 jointing cutter

DP jointing cutter 2.0
Cutting 2.0

NEW APPLICATION: For sizing and jointing of wood-based panel material with and
without coating. Limited suitability for chip boards with low density
and front-end processing of solid wood
MATERIAL: Chip board, MDF, Multiplex, hard wood and soft wood
longitudinal, wood-based panel material.
B
MACHINE: Edge banding machines
DESIGN: Jointing cutter with alternating axial angle for sizing and the
d production of tear-free jointing edges; with V-line gullet.
D Design optionally symmetrical or asymmetrial.
TOOTH: DP, tip height 3 mm, re-grindable up to 4 times.
tip height 5 mm, re-grindable up to 14 times.
33020 SYMMETRICAL Always adjusted to the centre of the workpiece.
DESIGN: The tool is slightly convex at the outer diameter.
For both right hand and left hand rotation.
saw body type with fig. of
hub length ASYMMETRICAL Always adjusted to the bottom line of the workpiece. The tool is
DESIGN: straight at the outer diameter, right hand or left hand design.

b

D B b d Z th Machine Type rhs/ DT Order No.
Type A mm mm mm mm lhs
60 64 64 25/DKN 2/2 3,0 Felder C rhs 10189632
60 64 64 25/DKN 2/2 3,0 Felder C lhs 10189633
70 54 31 30/DKN 2/2 3,0 HolzHer E rhs ◊ 10189639
b 70 54 31 30/DKN 2/2 3,0 HolzHer E lhs ◊ 10189640
Type B 70 64 41 30/DKN 2/2 3,0 HolzHer E rhs 10189641
70 64 41 30/DKN 2/2 3,0 HolzHer E lhs 10189642
NEW 70 47 61 25/DKN 2/2 3,0 Hebrock D rhs 10189652
NEW 70 47 61 25/DKN 2/2 3,0 Hebrock D lhs 10189653
b 85 45 48 30/DKN 3/3 3,0 Ott A rhs ◊ 10189607
85 45 48 30/DKN 3/3 3,0 Ott A lhs ◊ 10189608
Type C 100 34 39 30/DKN 3/3 3,0 Brandt A rhs 10189609
100 34 39 30/DKN 3/3 3,0 Brandt A lhs 10189612
100 48 40,6 30/DKN 3/3 3,0 Brandt B rhs ◊ 10189618
100 48 40,6 30/DKN 3/3 3,0 Brandt B lhs ◊ 10189619
b
100 48 25 30/DKN 2/2 3,0 HolzHer C rhs ◊ 10189620
100 48 25 30/DKN 2/2 3,0 HolzHer C lhs ◊ 10189621
Type D NEW 100 48 40,6 25/DKN 2/2 3,0 Brandt B rhs ◊ 10190580
NEW 100 48 40,6 25/DKN 2/2 3,0 Brandt B lhs ◊ 10190581
100 45,5 61 30/DKN 2/2 3,0 Hebrock D rhs ◊ 10189630
100 45,5 61 30/DKN 2/2 3,0 Hebrock D lhs ◊ 10189631
b
100 65,5 75 30/DKN 2/2 3,0 Hebrock D rhs ◊ 10189637
Type E
100 65,5 75 30/DKN 2/2 3,0 Hebrock D lhs ◊ 10189638
100 63 25 30/DKN 2/2 3,0 HolzHer C rhs 10189643
100 63 25 30/DKN 2/2 3,0 HolzHer C lhs 10189644
b

Type F

Continued next page.

14
