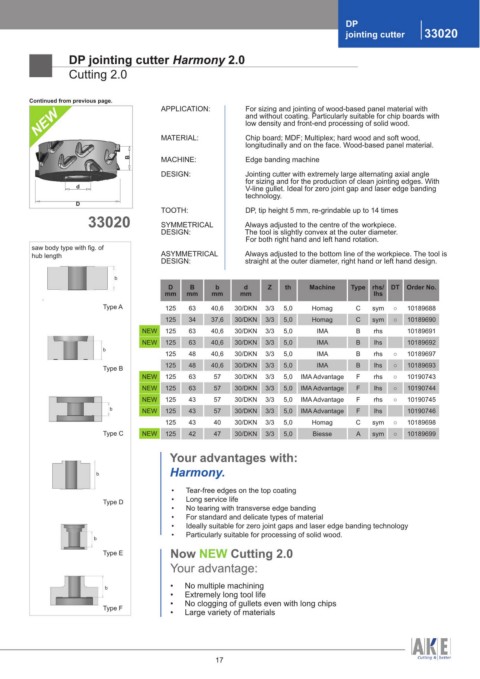

jointing cutter 33020

DP jointing cutter Harmony 2.0 DP jointing cutter Harmony 2.0
Cutting 2.0 Cutting 2.0

Continued from previous page. APPLICATION: For sizing and jointing of wood-based panel material with
NEW and without coating. Particularly suitable for chip boards with
low density and front-end processing of solid wood.

MATERIAL: Chip board; MDF; Multiplex; hard wood and soft wood,
longitudinally and on the face. Wood-based panel material.

B MACHINE: Edge banding machine
DESIGN: Jointing cutter with extremely large alternating axial angle
for sizing and for the production of clean jointing edges. With
d V-line gullet. Ideal for zero joint gap and laser edge banding
technology.
D
TOOTH: DP, tip height 5 mm, re-grindable up to 14 times
33020 SYMMETRICAL Always adjusted to the centre of the workpiece.
DESIGN: The tool is slightly convex at the outer diameter.
For both right hand and left hand rotation.
saw body type with fig. of
hub length ASYMMETRICAL Always adjusted to the bottom line of the workpiece. The tool is
DESIGN: straight at the outer diameter, right hand or left hand design.

b
D B b d Z th Machine Type rhs/ DT Order No. D B b d Z th Machine Type rhs/ DT Order No.
mm mm mm mm lhs mm mm mm mm lhs
NEW 60 64 64 25/DKN 2/2 5,0 Felder C rhs ○ 10189678 Type A 125 63 40,6 30/DKN 3/3 5,0 Homag C sym ○ 10189688
NEW 60 64 64 25/DKN 2/2 5,0 Felder C lhs ○ 10189679 125 34 37,6 30/DKN 3/3 5,0 Homag C sym ○ 10189690
NEW 70 54 31 30/DKN 2/2 5,0 HolzHer E rhs 10189682 NEW 125 63 40,6 30/DKN 3/3 5,0 IMA B rhs 10189691
NEW 70 54 31 30/DKN 2/2 5,0 HolzHer E lhs 10189683 NEW 125 63 40,6 30/DKN 3/3 5,0 IMA B lhs 10189692
NEW 70 64 41 30/DKN 2/2 5,0 HolzHer E rhs 10189684 b 125 48 40,6 30/DKN 3/3 5,0 IMA B rhs ○ 10189697
NEW 70 64 41 30/DKN 2/2 5,0 HolzHer E lhs 10189685 125 48 40,6 30/DKN 3/3 5,0 IMA B lhs ○ 10189693
Type B
NEW 70 47 61 25/DKN 2/2 5,0 Hebrock D rhs ○ 10189700 NEW 125 63 57 30/DKN 3/3 5,0 IMA Advantage F rhs ○ 10190743
NEW 70 47 61 25/DKN 2/2 5,0 Hebrock D lhs ○ 10189701 NEW 125 63 57 30/DKN 3/3 5,0 IMA Advantage F lhs ○ 10190744
NEW 85 48 45 30/DKN 3/3 5,0 Ott A rhs ○ 10189666 NEW 125 43 57 30/DKN 3/3 5,0 IMA Advantage F rhs ○ 10190745
NEW 85 48 45 30/DKN 3/3 5,0 Ott A lhs ○ 10189667 b NEW 125 43 57 30/DKN 3/3 5,0 IMA Advantage F lhs 10190746
100 39 37,6 30/DKN 3/3 5,0 Brandt A rhs ○ 10189669 125 43 40 30/DKN 3/3 5,0 Homag C sym ○ 10189698
100 39 37,6 30/DKN 3/3 5,0 Brandt A lhs ○ 10189668 Type C NEW 125 42 47 30/DKN 3/3 5,0 Biesse A sym ○ 10189699
100 48 40,6 30/DKN 3/3 5,0 Brandt B rhs ○ 10189671
100 48 40,6 30/DKN 3/3 5,0 Brandt B lhs ○ 10189670 Your advantages with:
NEW 100 48 25 30/DKN 2/2 5,0 HolzHer C rhs ○ 10189672
b Harmony.
NEW 100 48 25 30/DKN 2/2 5,0 HolzHer C lhs ○ 10189673
NEW 100 48 40,6 25/DKN 2/2 5,0 Brandt B rhs ○ 10190484 • Tear-free edges on the top coating
NEW 100 48 40,6 25/DKN 2/2 5,0 Brandt B lhs ○ 10190485 Type D • Long service life
NEW 100 45,5 61 30/DKN 2/2 5,0 Hebrock D rhs ○ 10189674 • No tearing with transverse edge banding
• For standard and delicate types of material
NEW 100 45,5 61 30/DKN 2/2 5,0 Hebrock D lhs ○ 10189675 • Ideally suitable for zero joint gaps and laser edge banding technology
NEW 100 65,5 75 30/DKN 2/2 5,0 Hebrock D rhs ○ 10189676 b • Particularly suitable for processing of solid wood.
NEW 100 65,5 75 30/DKN 2/2 5,0 Hebrock D lhs ○ 10189677
Type E Now NEW Cutting 2.0
NEW 100 63 25 30/DKN 2/2 5,0 HolzHer C rhs ◊ 10189686
NEW 100 63 25 30/DKN 2/2 5,0 HolzHer C lhs ◊ 10189687 Your advantage:
100 63 40,6 30/DKN 3/3 5,0 IMA/Brandt B rhs ◊ 10190084
b • No multiple machining
100 63 40,6 30/DKN 3/3 5,0 IMA/Brandt B lhs 10190085 • Extremely long tool life
• No clogging of gullets even with long chips
Type F
• Large variety of materials
