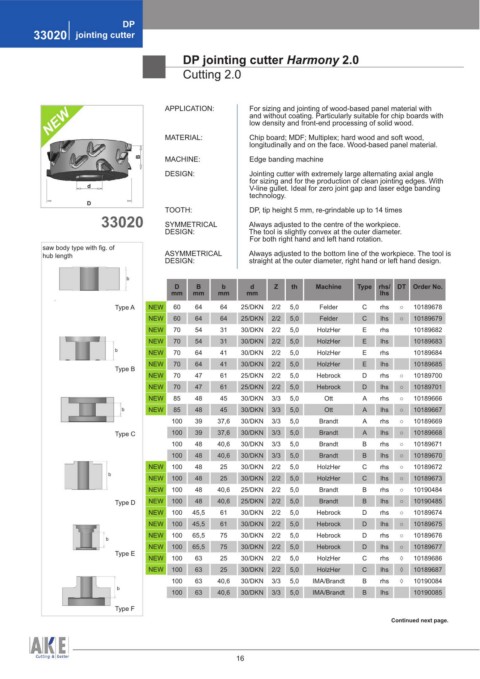

Page 16 - Furniture production_EN_2015

DP
33020 jointing cutter

DP jointing cutter Harmony 2.0
Cutting 2.0

NEW APPLICATION: For sizing and jointing of wood-based panel material with

and without coating. Particularly suitable for chip boards with

low density and front-end processing of solid wood.
longitudinally and on the face. Wood-based panel material.
MATERIAL: Chip board; MDF; Multiplex; hard wood and soft wood,

B MACHINE: Edge banding machine
DESIGN: Jointing cutter with extremely large alternating axial angle
for sizing and for the production of clean jointing edges. With
d V-line gullet. Ideal for zero joint gap and laser edge banding
technology.
D
TOOTH: DP, tip height 5 mm, re-grindable up to 14 times
33020 SYMMETRICAL Always adjusted to the centre of the workpiece.
DESIGN: The tool is slightly convex at the outer diameter.
For both right hand and left hand rotation.
saw body type with fig. of
hub length ASYMMETRICAL Always adjusted to the bottom line of the workpiece. The tool is
DESIGN: straight at the outer diameter, right hand or left hand design.

b
D B b d Z th Machine Type rhs/ DT Order No.
mm mm mm mm lhs
Type A NEW 60 64 64 25/DKN 2/2 5,0 Felder C rhs ○ 10189678
NEW 60 64 64 25/DKN 2/2 5,0 Felder C lhs ○ 10189679
NEW 70 54 31 30/DKN 2/2 5,0 HolzHer E rhs 10189682
NEW 70 54 31 30/DKN 2/2 5,0 HolzHer E lhs 10189683
b NEW 70 64 41 30/DKN 2/2 5,0 HolzHer E rhs 10189684
NEW 70 64 41 30/DKN 2/2 5,0 HolzHer E lhs 10189685
Type B
NEW 70 47 61 25/DKN 2/2 5,0 Hebrock D rhs ○ 10189700
NEW 70 47 61 25/DKN 2/2 5,0 Hebrock D lhs ○ 10189701
NEW 85 48 45 30/DKN 3/3 5,0 Ott A rhs ○ 10189666
b NEW 85 48 45 30/DKN 3/3 5,0 Ott A lhs ○ 10189667
100 39 37,6 30/DKN 3/3 5,0 Brandt A rhs ○ 10189669
Type C 100 39 37,6 30/DKN 3/3 5,0 Brandt A lhs ○ 10189668
100 48 40,6 30/DKN 3/3 5,0 Brandt B rhs ○ 10189671
100 48 40,6 30/DKN 3/3 5,0 Brandt B lhs ○ 10189670
NEW 100 48 25 30/DKN 2/2 5,0 HolzHer C rhs ○ 10189672
b
NEW 100 48 25 30/DKN 2/2 5,0 HolzHer C lhs ○ 10189673
NEW 100 48 40,6 25/DKN 2/2 5,0 Brandt B rhs ○ 10190484
Type D NEW 100 48 40,6 25/DKN 2/2 5,0 Brandt B lhs ○ 10190485
NEW 100 45,5 61 30/DKN 2/2 5,0 Hebrock D rhs ○ 10189674
5,0
45,5
100
30/DKN
61
2/2
NEW Weitere Abmessungen auf Anfrage lieferbar Hebrock D lhs ○ 10189675
NEW 100 65,5 75 30/DKN 2/2 5,0 Hebrock D rhs ○ 10189676
b
NEW 100 65,5 75 30/DKN 2/2 5,0 Hebrock D lhs ○ 10189677
Type E
NEW 100 63 25 30/DKN 2/2 5,0 HolzHer C rhs ◊ 10189686
NEW 100 63 25 30/DKN 2/2 5,0 HolzHer C lhs ◊ 10189687
100 63 40,6 30/DKN 3/3 5,0 IMA/Brandt B rhs ◊ 10190084
b
100 63 40,6 30/DKN 3/3 5,0 IMA/Brandt B lhs 10190085
Type F
Continued next page.
