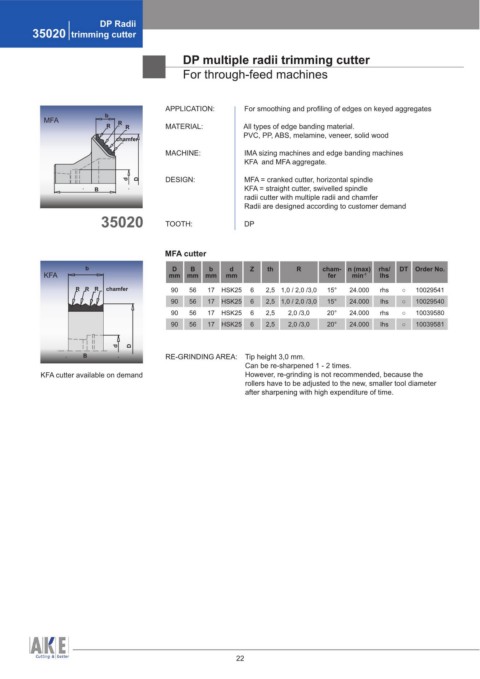

Page 22 - Furniture production_EN_2015

DP Radii
35020 trimming cutter

DP multiple radii trimming cutter
For through-feed machines

APPLICATION: For smoothing and profiling of edges on keyed aggregates
b
MFA
. R . R . R MATERIAL: All types of edge banding material.
PVC, PP, ABS, melamine, veneer, solid wood
chamfer
.
MACHINE: IMA sizing machines and edge banding machines
KFA and MFA aggregate.

d D DESIGN: MFA = cranked cutter, horizontal spindle
B KFA = straight cutter, swivelled spindle
radii cutter with multiple radii and chamfer
Radii are designed according to customer demand
35020 TOOTH: DP

MFA cutter

b D B b d Z th R cham- n (max) rhs/ DT Order No.
KFA mm mm mm mm fer min -1 lhs
.
. R R . . R . chamfer 90 56 17 HSK25 6 2,5 1,0 / 2,0 /3,0 15° 24.000 rhs ○ 10029541
90 56 17 HSK25 6 2,5 1,0 / 2,0 /3,0 15° 24.000 lhs ○ 10029540
90 56 17 HSK25 6 2,5 2,0 /3,0 20° 24.000 rhs ○ 10039580
90 56 17 HSK25 6 2,5 2,0 /3,0 20° 24.000 lhs ○ 10039581

d D
B RE-GRINDING AREA: Tip height 3,0 mm.
Can be re-sharpened 1 - 2 times.
KFA cutter available on demand However, re-grinding is not recommended, because the
rollers have to be adjusted to the new, smaller tool diameter
after sharpening with high expenditure of time.
