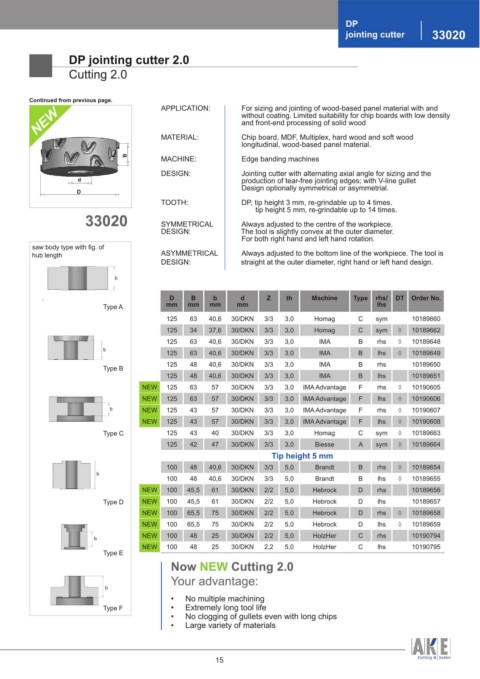

Page 15 - Furniture production_EN_2015

DP
jointing cutter 33020

DP jointing cutter 2.0 DP jointing cutter 2.0
Cutting 2.0 Cutting 2.0

Continued from previous page. APPLICATION: For sizing and jointing of wood-based panel material with and
NEW without coating. Limited suitability for chip boards with low density
and front-end processing of solid wood
MATERIAL: Chip board, MDF, Multiplex, hard wood and soft wood
longitudinal, wood-based panel material.
B
MACHINE: Edge banding machines
DESIGN: Jointing cutter with alternating axial angle for sizing and the
d production of tear-free jointing edges; with V-line gullet
Design optionally symmetrical or asymmetrial.
D
TOOTH: DP, tip height 3 mm, re-grindable up to 4 times.
tip height 5 mm, re-grindable up to 14 times.
33020 SYMMETRICAL Always adjusted to the centre of the workpiece.
DESIGN: The tool is slightly convex at the outer diameter.
For both right hand and left hand rotation.
saw body type with fig. of
hub length ASYMMETRICAL Always adjusted to the bottom line of the workpiece. The tool is
DESIGN: straight at the outer diameter, right hand or left hand design.

b

D B b d Z th Machine Type rhs/ DT Order No. D B b d Z th Machine Type rhs/ DT Order No.
mm mm mm mm lhs Type A mm mm mm mm lhs
60 64 64 25/DKN 2/2 3,0 Felder C rhs 10189632 125 63 40,6 30/DKN 3/3 3,0 Homag C sym 10189660
60 64 64 25/DKN 2/2 3,0 Felder C lhs 10189633 125 34 37,6 30/DKN 3/3 3,0 Homag C sym ◊ 10189662
70 54 31 30/DKN 2/2 3,0 HolzHer E rhs ◊ 10189639 125 63 40,6 30/DKN 3/3 3,0 IMA B rhs ◊ 10189648
70 54 31 30/DKN 2/2 3,0 HolzHer E lhs ◊ 10189640 b 125 63 40,6 30/DKN 3/3 3,0 IMA B lhs ◊ 10189649
70 64 41 30/DKN 2/2 3,0 HolzHer E rhs 10189641 Type B 125 48 40,6 30/DKN 3/3 3,0 IMA B rhs 10189650
70 64 41 30/DKN 2/2 3,0 HolzHer E lhs 10189642 125 48 40,6 30/DKN 3/3 3,0 IMA B lhs 10189651
NEW 70 47 61 25/DKN 2/2 3,0 Hebrock D rhs 10189652 NEW 125 63 57 30/DKN 3/3 3,0 IMA Advantage F rhs ◊ 10190605
NEW 70 47 61 25/DKN 2/2 3,0 Hebrock D lhs 10189653 NEW 125 63 57 30/DKN 3/3 3,0 IMA Advantage F lhs ◊ 10190606
85 45 48 30/DKN 3/3 3,0 Ott A rhs ◊ 10189607 b NEW 125 43 57 30/DKN 3/3 3,0 IMA Advantage F rhs ◊ 10190607
85 45 48 30/DKN 3/3 3,0 Ott A lhs ◊ 10189608 NEW 125 43 57 30/DKN 3/3 3,0 IMA Advantage F lhs ◊ 10190608
100 34 39 30/DKN 3/3 3,0 Brandt A rhs 10189609 Type C 125 43 40 30/DKN 3/3 3,0 Homag C sym ◊ 10189663
100 34 39 30/DKN 3/3 3,0 Brandt A lhs 10189612 125 42 47 30/DKN 3/3 3,0 Biesse A sym ◊ 10189664
100 48 40,6 30/DKN 3/3 3,0 Brandt B rhs ◊ 10189618 Tip height 5 mm
100 48 40,6 30/DKN 3/3 3,0 Brandt B lhs ◊ 10189619 100 48 40,6 30/DKN 3/3 5,0 Brandt B rhs ◊ 10189654
b
100 48 25 30/DKN 2/2 3,0 HolzHer C rhs ◊ 10189620 100 48 40,6 30/DKN 3/3 5,0 Brandt B lhs ◊ 10189655
100 48 25 30/DKN 2/2 3,0 HolzHer C lhs ◊ 10189621 NEW 100 45,5 61 30/DKN 2/2 5,0 Hebrock D rhs 10189656
NEW 100 48 40,6 25/DKN 2/2 3,0 Brandt B rhs ◊ 10190580 Type D NEW 100 45,5 61 30/DKN 2/2 5,0 Hebrock D lhs 10189657
NEW 100 48 40,6 25/DKN 2/2 3,0 Brandt B lhs ◊ 10190581 NEW 100 65,5 75 30/DKN 2/2 5,0 Hebrock D rhs ◊ 10189658
100 45,5 61 30/DKN 2/2 3,0 Hebrock D rhs ◊ 10189630 NEW 100 65,5 75 30/DKN 2/2 5,0 Hebrock D lhs ◊ 10189659
100 45,5 61 30/DKN 2/2 3,0 Hebrock D lhs ◊ 10189631 b NEW 100 48 25 30/DKN 2/2 5,0 HolzHer C rhs 10190794
100 65,5 75 30/DKN 2/2 3,0 Hebrock D rhs ◊ 10189637 NEW 100 48 25 30/DKN 2,2 5,0 HolzHer C lhs 10190795
Type E
100 65,5 75 30/DKN 2/2 3,0 Hebrock D lhs ◊ 10189638
100 63 25 30/DKN 2/2 3,0 HolzHer C rhs 10189643 Now NEW Cutting 2.0
100 63 25 30/DKN 2/2 3,0 HolzHer C lhs 10189644 Your advantage:
b
• No multiple machining
Type F • Extremely long tool life
• No clogging of gullets even with long chips
• Large variety of materials
Continued next page.
