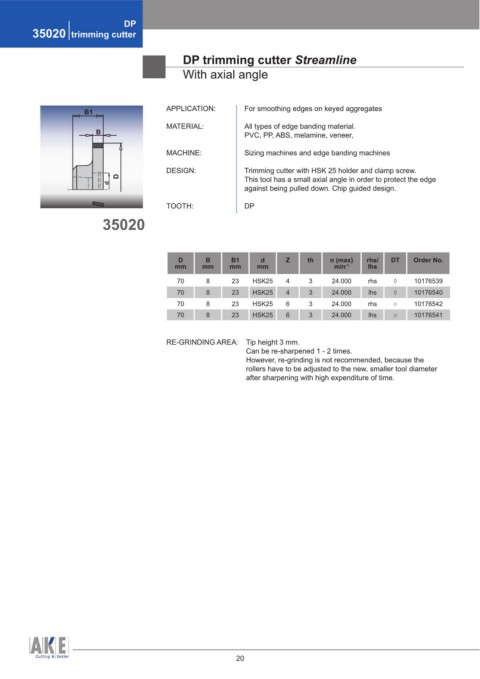

Page 20 - Furniture production_EN_2015

DP
35020 trimming cutter

DP trimming cutter Streamline
With axial angle

APPLICATION: For smoothing edges on keyed aggregates
B1
MATERIAL: All types of edge banding material.
B PVC, PP, ABS, melamine, veneer,

MACHINE: Sizing machines and edge banding machines

DESIGN: Trimming cutter with HSK 25 holder and clamp screw.
D This tool has a small axial angle in order to protect the edge
d
against being pulled down. Chip guided design.
TOOTH: DP
rechts
35020

D B B1 d Z th n (max) rhs/ DT Order No.
mm mm mm mm min -1 lhs
70 8 23 HSK25 4 3 24.000 rhs ◊ 10176539
70 8 23 HSK25 4 3 24.000 lhs ◊ 10176540
70 8 23 HSK25 6 3 24.000 rhs ○ 10176542
70 8 23 HSK25 6 3 24.000 lhs ○ 10176541

RE-GRINDING AREA: Tip height 3 mm.
Can be re-sharpened 1 - 2 times.
However, re-grinding is not recommended, because the
rollers have to be adjusted to the new, smaller tool diameter
after sharpening with high expenditure of time.
