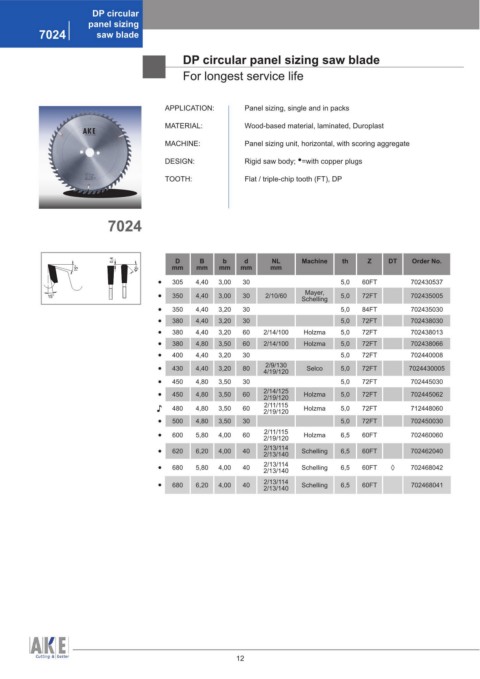

Page 12 - Furniture production_EN_2015

DP circular
panel sizing
7024 saw blade

DP circular panel sizing saw blade
For longest service life

APPLICATION: Panel sizing, single and in packs

MATERIAL: Wood-based material, laminated, Duroplast

MACHINE: Panel sizing unit, horizontal, with scoring aggregate
DESIGN: Rigid saw body; •=with copper plugs

TOOTH: Flat / triple-chip tooth (FT), DP

7024

0,4 D B b d NL Machine th Z DT Order No.
15° 45° mm mm mm mm mm
• 305 4,40 3,00 30 5,0 60FT 702430537

• 350 4,40 3,00 30 2/10/60 Mayer, 5,0 72FT 702435005
15° Schelling
• 350 4,40 3,20 30 5,0 84FT 702435030
• 380 4,40 3,20 30 5,0 72FT 702438030
• 380 4,40 3,20 60 2/14/100 Holzma 5,0 72FT 702438013
• 380 4,80 3,50 60 2/14/100 Holzma 5,0 72FT 702438066
• 400 4,40 3,20 30 5,0 72FT 702440008
2/9/130
• 430 4,40 3,20 80 4/19/120 Selco 5,0 72FT 7024430005
• 450 4,80 3,50 30 5,0 72FT 702445030
• 450 4,80 3,50 60 2/14/125 Holzma 5,0 72FT 702445062
2/19/120
2/11/115
♪ 480 4,80 3,50 60 2/19/120 Holzma 5,0 72FT 712448060
• 500 4,80 3,50 30 5,0 72FT 702450030
• 600 5,80 4,00 60 2/19/120 Holzma 6,5 60FT 702460060
2/11/115
• 620 6,20 4,00 40 2/13/114 Schelling 6,5 60FT 702462040
2/13/140
• 680 5,80 4,00 40 2/13/114 Schelling 6,5 60FT ◊ 702468042
2/13/140
• 680 6,20 4,00 40 2/13/114 Schelling 6,5 60FT 702468041
2/13/140
