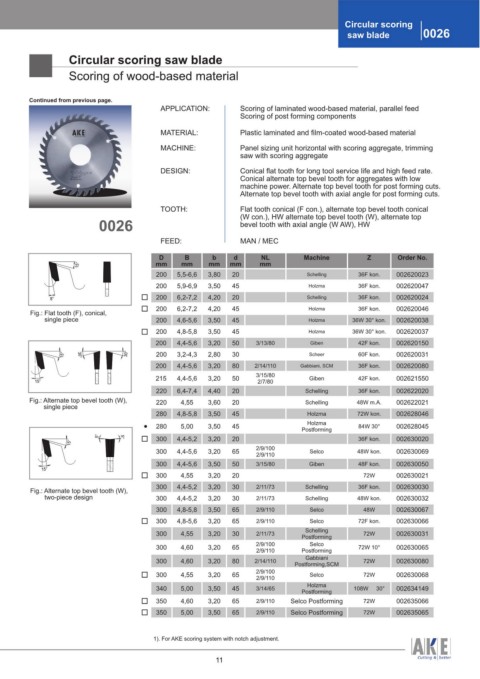

Page 11 - Furniture production_EN_2015

Circular scoring
saw blade 0026

Circular scoring saw blade
Scoring of wood-based material

Continued from previous page.
APPLICATION: Scoring of laminated wood-based material, parallel feed
Scoring of post forming components

MATERIAL: Plastic laminated and film-coated wood-based material
MACHINE: Panel sizing unit horizontal with scoring aggregate, trimming
saw with scoring aggregate

DESIGN: Conical flat tooth for long tool service life and high feed rate.
Conical alternate top bevel tooth for aggregates with low
machine power. Alternate top bevel tooth for post forming cuts.
Alternate top bevel tooth with axial angle for post forming cuts.

TOOTH: Flat tooth conical (F con.), alternate top bevel tooth conical
0026 (W con.), HW alternate top bevel tooth (W), alternate top
bevel tooth with axial angle (W AW), HW

FEED: MAN / MEC
D B b d NL Machine Z Order No. D B b d NL Machine Z Order No.
mm mm mm mm mm 15° mm mm mm mm mm
140 4,4-5,6 3,40 45 Euromac (Holzher) 28W kon. 002614045 200 5,5-6,6 3,80 20 Schelling 36F kon. 002620023
150 3,0-4,0 2,60 30 28F kon. 002615030 200 5,9-6,9 3,50 45 Holzma 36F kon. 002620047
150 4,4-5,6 3,40 30 Mayer 28F kon. 002615006 8° 200 6,2-7,2 4,20 20 Schelling 36F kon. 002620024
150 4,4-5,6 3,40 45 28F kon. 002615045 200 6,2-7,2 4,20 45 Holzma 36F kon. 002620046
Fig.: Flat tooth (F), conical,
160 4,4-5,6 3,20 30 28F kon. 002616033 single piece 200 4,6-5,6 3,50 45 Holzma 36W 30° kon. 002620038
160 4,4-5,6 3,20 45 3/11/70 Giben 28F kon. 002616045 200 4,8-5,8 3,50 45 Holzma 36W 30° kon. 002620037
160 3,1-4,0 2,60 20 Langzauner 32F kon. 002616021 200 4,4-5,6 3,20 50 3/13/80 Giben 42F kon. 002620150
160 3,2-3,9 2,20 50 2/7/70 Giben 32W kon. 002616050 15° 30° 30° 200 3,2-4,3 2,80 30 Scheer 60F kon. 002620031
160 4,4-5,6 3,40 55 3/7/66 Gabbiani, SCM 36F kon. 002616055 200 4,4-5,6 3,20 80 2/14/110 Gabbiani, SCM 36F kon. 002620080
175 4,6-5,8 3,50 45 Holzma 28F kon. 002617545 215 4,4-5,6 3,20 50 3/15/80 Giben 42F kon. 002621550
15° 2/7/80
180 2,8-3,8 4,40 50 4/6/62 m.A. 1), Altendorf 18W+18W 002618051 220 6,4-7,4 4,40 20 Schelling 36F kon. 002622020
180 4,4-5,6 3,40 20 Anthon, Schelling 28F kon. 002618020 Fig.: Alternate top bevel tooth (W), 220 4,55 3,60 20 Schelling 48W m.A. 002622021
single piece
180 4,4-5,6 3,40 30 NLK Panhans, Holzher 28F kon. 002618030 280 4,8-5,8 3,50 45 Holzma 72W kon. 002628046
180 4,4-5,6 3,20 45 Holzma 36F kon. 002618045 • 280 5,00 3,50 45 Holzma 84W 30° 002628045
180 4,8-5,8 3,50 45 Holzma 36F kon. 002618145 5° 5° 300 4,4-5,2 3,20 20 Postforming 36F kon. 002630020
180 5,8-6,8 4,00 20 Anthon 36F kon. 002618220 15° 2/9/100
300 4,4-5,6 3,20 65 Selco 48W kon. 002630069
180 6,8-7,8 5,00 20 Anthon, Schelling 36F kon. 002618034 2/9/110
300 4,4-5,6 3,50 50 3/15/80 Giben 48F kon. 002630050
180 4,55 3,50 30 Panhans 36W 5° 002618031 15°
300 4,55 3,20 20 72W 002630021
180 4,4-5,6 3,20 45 1), Holzma 20W+20W 002618013
180 3,2-4,3 2,80 16 2/6/33 Scheer 42F kon. 002618016 Fig.: Alternate top bevel tooth (W), 300 4,4-5,2 3,20 30 2/11/73 Schelling 36F kon. 002630030
two-piece design 300 4,4-5,2 3,20 30 2/11/73 Schelling 48W kon. 002630032
180 4,4-5,6 3,40 50 3/13/80 Giben 42F kon. 002618050
300 4,8-5,8 3,50 65 2/9/110 Selco 48W 002630067
190 4,0-5,2 2,80 50 2/7/80 Giben 32W kon. 002619050
300 4,8-5,6 3,20 65 2/9/110 Selco 72F kon. 002630066
200 4,4-5,6 3,40 20 Schelling 24F kon. 002620022 Schelling
200 4,4-5,6 3,40 20 Schelling 36F kon. 002620034 300 4,55 3,20 30 2/11/73 Postforming 72W 002630031
2/9/100 Selco
200 4,4-5,6 3,20 30 2/8,5/60 Panhans, Scheer 36F kon. 002620030 300 4,60 3,20 65 2/9/110 Postforming 72W 10° 002630065
200 4,4-5,6 3,20 65 2/9/110 Selco 36F kon. 002620065 300 4,60 3,20 80 2/14/110 Gabbiani 72W 002630080
2/9/100 Postforming,SCM
200 4,8-5,8 3,50 30 2/8,5/60 Scheer 36F kon. 002620032 300 4,55 3,20 65 2/9/100 Selco 72W 002630068
2/9/110
200 4,8-5,8 3,50 45 Holzma 36F kon. 002620045 Holzma
340 5,00 3,50 45 3/14/65 Postforming 108W 30° 002634149
200 4,8-5,8 3,50 45 Holzma 36W kon. 002620049 350 4,60 3,20 65 2/9/110 Selco Postforming 72W 002635066
2/9/110
200 4,8-5,8 3,50 65 2/9/100 Selco 36F kon. 002620066 350 5,00 3,50 65 2/9/110 Selco Postforming 72W 002635065
200 5,0-5,8 3,50 20 Schelling 36F kon. 002620020
Continued next page.
1). For AKE scoring system with notch adjustment.
