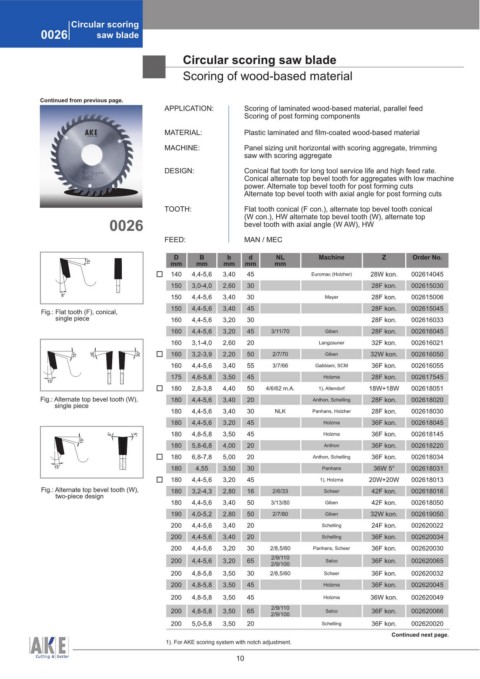

Page 10 - Furniture production_EN_2015

Circular scoring
0026 saw blade

Circular scoring saw blade
Scoring of wood-based material

Continued from previous page.
APPLICATION: Scoring of laminated wood-based material, parallel feed
Scoring of post forming components

MATERIAL: Plastic laminated and film-coated wood-based material
MACHINE: Panel sizing unit horizontal with scoring aggregate, trimming
saw with scoring aggregate

DESIGN: Conical flat tooth for long tool service life and high feed rate.
Conical alternate top bevel tooth for aggregates with low machine
power. Alternate top bevel tooth for post forming cuts
Alternate top bevel tooth with axial angle for post forming cuts

TOOTH: Flat tooth conical (F con.), alternate top bevel tooth conical
0026 (W con.), HW alternate top bevel tooth (W), alternate top
bevel tooth with axial angle (W AW), HW
FEED: MAN / MEC

D B b d NL Machine Z Order No.
15° mm mm mm mm mm
140 4,4-5,6 3,40 45 Euromac (Holzher) 28W kon. 002614045
150 3,0-4,0 2,60 30 28F kon. 002615030
8° 150 4,4-5,6 3,40 30 Mayer 28F kon. 002615006

Fig.: Flat tooth (F), conical, 150 4,4-5,6 3,40 45 28F kon. 002615045
single piece 160 4,4-5,6 3,20 30 28F kon. 002616033
160 4,4-5,6 3,20 45 3/11/70 Giben 28F kon. 002616045
160 3,1-4,0 2,60 20 Langzauner 32F kon. 002616021
15° 30° 30° 160 3,2-3,9 2,20 50 2/7/70 Giben 32W kon. 002616050
160 4,4-5,6 3,40 55 3/7/66 Gabbiani, SCM 36F kon. 002616055
175 4,6-5,8 3,50 45 Holzma 28F kon. 002617545
15°
180 2,8-3,8 4,40 50 4/6/62 m.A. 1), Altendorf 18W+18W 002618051
Fig.: Alternate top bevel tooth (W), 180 4,4-5,6 3,40 20 Anthon, Schelling 28F kon. 002618020
single piece
180 4,4-5,6 3,40 30 NLK Panhans, Holzher 28F kon. 002618030
180 4,4-5,6 3,20 45 Holzma 36F kon. 002618045
5° 5° 180 4,8-5,8 3,50 45 Holzma 36F kon. 002618145
15°
180 5,8-6,8 4,00 20 Anthon 36F kon. 002618220
180 6,8-7,8 5,00 20 Anthon, Schelling 36F kon. 002618034
15° 180 4,55 3,50 30 Panhans 36W 5° 002618031
180 4,4-5,6 3,20 45 1), Holzma 20W+20W 002618013
Fig.: Alternate top bevel tooth (W), 180 3,2-4,3 2,80 16 2/6/33 Scheer 42F kon. 002618016
two-piece design
180 4,4-5,6 3,40 50 3/13/80 Giben 42F kon. 002618050
190 4,0-5,2 2,80 50 2/7/80 Giben 32W kon. 002619050
200 4,4-5,6 3,40 20 Schelling 24F kon. 002620022
200 4,4-5,6 3,40 20 Schelling 36F kon. 002620034
200 4,4-5,6 3,20 30 2/8,5/60 Panhans, Scheer 36F kon. 002620030
200 4,4-5,6 3,20 65 2/9/110 Selco 36F kon. 002620065
2/9/100
200 4,8-5,8 3,50 30 2/8,5/60 Scheer 36F kon. 002620032
200 4,8-5,8 3,50 45 Holzma 36F kon. 002620045
200 4,8-5,8 3,50 45 Holzma 36W kon. 002620049
2/9/110
200 4,8-5,8 3,50 65 2/9/100 Selco 36F kon. 002620066
200 5,0-5,8 3,50 20 Schelling 36F kon. 002620020
Continued next page.
1). For AKE scoring system with notch adjustment.
