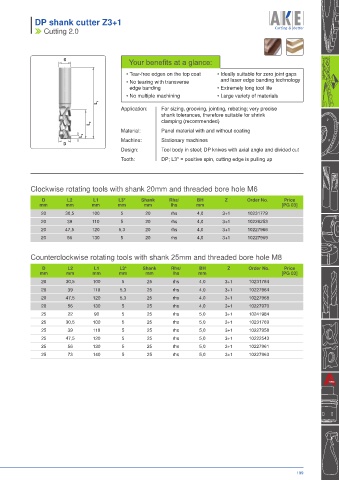

I DP shank cutter Z3+1

I Cutting 2.0

S Your benefits at a glance:

• Tear-free edges on the top coat • Ideally suitable for zero joint gaps
• No tearing with transverse and laser edge banding technology
edge banding • Extremely long tool life
• No multiple machining • Large variety of materials
L 1
Application: For sizing, grooving, jointing, rebating; very precise
shank tolerances, therefore suitable for shrink
clamping (recommended)
L 2
Material: Panel material with and without coating
L 3 Machine: Stationary machines
D
Design: Tool body in steel; DP knives with axial angle and divided cut
Tooth: DP; L3* = positive spin, cutting edge is pulling up

Clockwise rotating tools with shank 20mm and threaded bore hole M6

D L2 L1 L3* Shank Rhs/ BH Z Order No. Price
mm mm mm mm mm lhs mm [PG 03]
20 30,5 100 5 20 rhs 4,0 3+1 10231779
20 39 110 5 20 rhs 4,0 3+1 10226253
20 47,5 120 5,3 20 rhs 4,0 3+1 10227966
20 56 130 5 20 rhs 4,0 3+1 10227969

Counterclockwise rotating tools with shank 25mm and threaded bore hole M8

D L2 L1 L3* Shank Rhs/ BH Z Order No. Price
mm mm mm mm mm lhs mm [PG 03]
20 30,5 100 5 25 rhs 4,0 3+1 10231784
20 39 110 5,3 25 rhs 4,0 3+1 10227964
20 47,5 120 5,3 25 rhs 4,0 3+1 10227968
20 56 130 5 25 rhs 4,0 3+1 10227970
25 22 90 5 25 rhs 5,0 3+1 10241984
25 30,5 100 5 25 rhs 5,0 3+1 10231769
25 39 110 5 25 rhs 5,0 3+1 10227958
25 47,5 120 5 25 rhs 5,0 3+1 10222543
25 56 130 5 25 rhs 5,0 3+1 10227961
25 73 140 5 25 rhs 5,0 3+1 10227963
