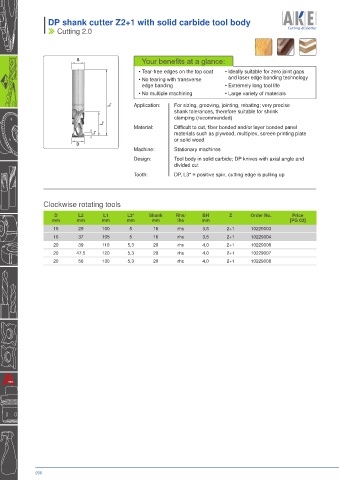

I DP shank cutter Z2+1 with solid carbide tool body I DP shank cutter Z3+1 with solid carbide tool body

I Cutting 2.0 I Cutting 2.0

S Your benefits at a glance:

• Tear-free edges on the top coat • Ideally suitable for zero joint gaps
• No tearing with transverse and laser edge banding technology
edge banding • Extremely long tool life
• No multiple machining • Large variety of materials
L 1 Application: For sizing, grooving, jointing, rebating; very precise
shank tolerances, therefore suitable for shrink
clamping (recommended)
L 2
Material: Difficult to cut, fiber bonded and/or layer bonded panel
L 3 materials such as plywood, multiplex, screen printing plate
or solid wood
D
Machine: Stationary machines
Design: Tool body in solid carbide; DP knives with axial angle and
divided cut

Tooth: DP, L3* = positive spin, cutting edge is pulling up

Clockwise rotating tools
D L2 L1 L3* Shank Rhs/ BH Z Order No. Price
mm mm mm mm mm lhs mm [PG 03]
16 29 100 5 16 rhs 3,5 2+1 10229003
16 37 105 5 16 rhs 3,5 2+1 10229004
20 39 110 5,3 20 rhs 4,0 2+1 10229006
20 47,5 120 5,3 20 rhs 4,0 2+1 10229007
20 56 130 5,3 20 rhs 4,0 2+1 10229008
