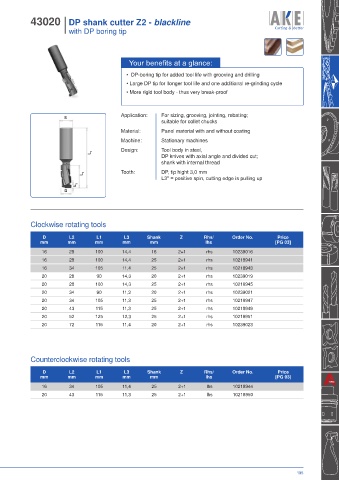

43020 I DP shank cutter Z2 - blackline
I with DP boring tip

Your benefits at a glance:

• DP-boring tip for added tool life with grooving and drilling
• Large DP tip for llonger tool life and one additional re-grinding cycle
• More rigid tool body - thus very break-proof

Application: For sizing, grooving, jointing, rebating;
S
suitable for collet chucks
Material: Panel material with and without coating
Machine: Stationary machines
Design: Tool body in steel,
L 1
DP knives with axial angle and divided cut;
shank with internal thread
Tooth: DP, tip hight 3,0 mm
L 2
L3* = positive spin, cutting edge is pulling up
L 3
D

Clockwise rotating tools

D L2 L1 L3 Shank Z Rhs/ Order No. Price
mm mm mm mm mm lhs [PG 03]
16 28 100 14,4 16 2+1 rhs 10239016
16 28 100 14,4 25 2+1 rhs 10218941
16 34 105 11,4 25 2+1 rhs 10218943
20 28 90 14,3 20 2+1 rhs 10239019
20 28 100 14,3 25 2+1 rhs 10218945
20 34 90 11,3 20 2+1 rhs 10239021
20 34 105 11,3 25 2+1 rhs 10218947
20 43 115 11,3 25 2+1 rhs 10218949
20 52 125 12,3 25 2+1 rhs 10218951
20 72 115 11,4 20 2+1 rhs 10239023

Counterclockwise rotating tools

D L2 L1 L3 Shank Z Rhs/ Order No. Price
mm mm mm mm mm lhs [PG 03]
16 34 105 11,4 25 2+1 lhs 10218944
20 43 115 11,3 25 2+1 lhs 10218950
