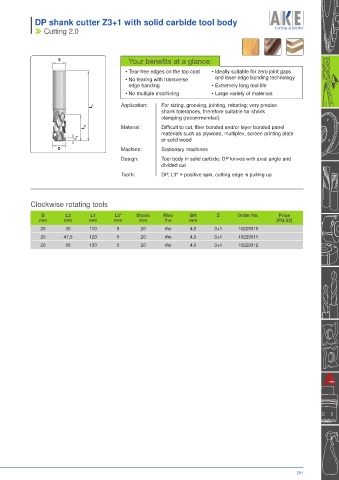

I DP shank cutter Z3+1 with solid carbide tool body

I Cutting 2.0

S Your benefits at a glance:

• Tear-free edges on the top coat • Ideally suitable for zero joint gaps
• No tearing with transverse and laser edge banding technology
edge banding • Extremely long tool life
• No multiple machining • Large variety of materials

L 1 Application: For sizing, grooving, jointing, rebating; very precise
shank tolerances, therefore suitable for shrink
clamping (recommended)

L 2 Material: Difficult to cut, fiber bonded and/or layer bonded panel
materials such as plywood, multiplex, screen printing plate
L 3 or solid wood
D Machine: Stationary machines
Design: Tool body in solid carbide; DP knives with axial angle and
divided cut

Tooth: DP, L3* = positive spin, cutting edge is pulling up

Clockwise rotating tools
D L2 L1 L3* Shank Rhs/ BH Z Order No. Price
mm mm mm mm mm lhs mm [PG 03]
20 39 110 5 20 rhs 4,0 3+1 10229010
20 47,5 120 5 20 rhs 4,0 3+1 10229011
20 56 130 5 20 rhs 4,0 3+1 10229012

201
