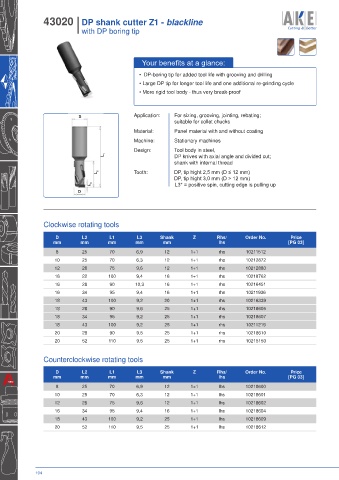

43020 I DP shank cutter Z1 - blackline3020 I DP shank cutter Z1 - blackline
I I with DP boring tip with DP boring tip

Your benefits at a glance:

• DP-boring tip for added tool life with grooving and drilling
• Large DP tip for longer tool life and one additional re-grinding cycle
• More rigid tool body - thus very break-proof

S Application: For sizing, grooving, jointing, rebating;
suitable for collet chucks
Material: Panel material with and without coating
Machine: Stationary machines
Design: Tool body in steel,
L 1 DP knives with axial angle and divided cut;
shank with internal thread
L 2 Tooth: DP, tip hight 2,5 mm (D ≤ 12 mm)
DP, tip hight 3,0 mm (D > 12 mm)
L 3 L3* = positive spin, cutting edge is pulling up
D

Clockwise rotating tools

D L2 L1 L3 Shank Z Rhs/ Order No. Price
mm mm mm mm mm lhs [PG 03]
8 25 70 6,9 12 1+1 rhs 10211512
10 25 70 6,3 12 1+1 rhs 10212872
12 28 75 9,6 12 1+1 rhs 10212880
16 22 100 9,4 16 1+1 rhs 10218762
16 28 90 10,3 16 1+1 rhs 10216451
16 34 95 9,4 16 1+1 rhs 10211936
18 43 100 9,2 20 1+1 rhs 10216339
18 28 90 9,6 25 1+1 rhs 10218605
18 34 95 9,2 25 1+1 rhs 10218607
18 43 100 9,2 25 1+1 rhs 10211219
20 28 90 9,5 25 1+1 rhs 10218610
20 52 110 9,5 25 1+1 rhs 10215150

Counterclockwise rotating tools

D L2 L1 L3 Shank Z Rhs/ Order No. Price
mm mm mm mm mm lhs [PG 03]
8 25 70 6,9 12 1+1 lhs 10218600
10 25 70 6,3 12 1+1 lhs 10218601
12 28 75 9,6 12 1+1 lhs 10218602
16 34 95 9,4 16 1+1 lhs 10218604
18 43 100 9,2 25 1+1 lhs 10218609
20 52 110 9,5 25 1+1 lhs 10218612
