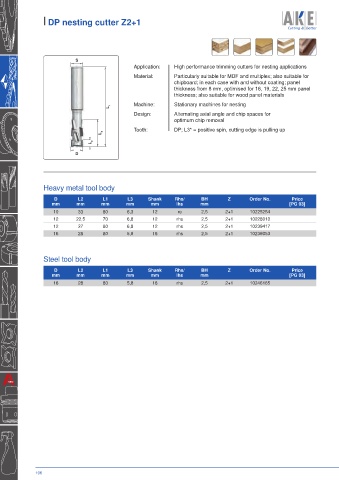

I DP nesting cutter Z2+1 I DP nesting cutter Z3+1

S
Application: High performance trimming cutters for nesting applications
Material: Particularly suitable for MDF and multiplex; also suitable for
chipboard; in each case with and without coating; panel
thickness from 8 mm, optimised for 16, 19, 22, 25 mm panel
thickness; also suitable for wood panel materials
Machine: Stationary machines for nesting
L 1
Design: Alternating axial angle and chip spaces for
optimum chip removal
Tooth: DP; L3* = positive spin, cutting edge is pulling up
L 2
L 3
D

Heavy metal tool body

D L2 L1 L3 Shank Rhs/ BH Z Order No. Price
mm mm mm mm mm lhs mm [PG 03]
10 33 80 6,3 12 re 2,5 2+1 10225254
12 22,5 70 6,8 12 rhs 2,5 2+1 10228010
12 27 80 6,8 12 rhs 2,5 2+1 10239417
16 28 80 5,8 16 rhs 2,5 2+1 10236053

Steel tool body
D L2 L1 L3 Shank Rhs/ BH Z Order No. Price
mm mm mm mm mm lhs mm [PG 03]
16 28 80 5,8 16 rhs 2,5 2+1 10246165

196
