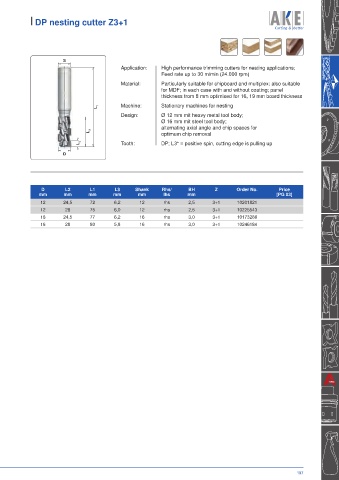

I DP nesting cutter Z3+1

S
Application: High performance trimming cutters for nesting applications;
Feed rate up to 30 m/min (24.000 rpm)
Material: Particularly suitable for chipboard and multiplex; also suitable
for MDF; in each case with and without coating; panel
thickness from 8 mm optimised for 16, 19 mm board thickness
Machine: Stationary machines for nesting
L 1
Design: Ø 12 mm mit heavy metal tool body;
Ø 16 mm mit steel tool body;
alternating axial angle and chip spaces for
L 2
optimum chip removal
L 3 Tooth: DP; L3* = positive spin, cutting edge is pulling up
D

D L2 L1 L3 Shank Rhs/ BH Z Order No. Price
mm mm mm mm mm lhs mm [PG 03]
12 24,5 72 6,2 12 rhs 2,5 3+1 10201821
12 28 75 6,0 12 rhs 2,5 3+1 10225543
16 24,5 77 6,2 16 rhs 3,0 3+1 10173288
16 28 80 5,8 16 rhs 3,0 3+1 10246184
