P. 190

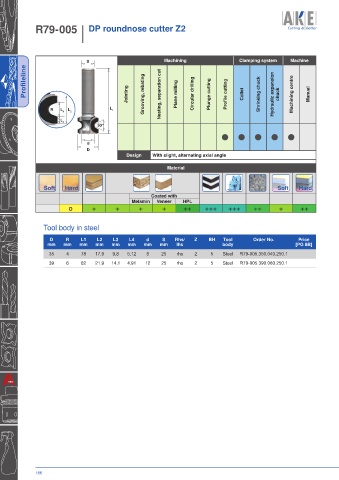

R79-005 DP roundnose cutter Z2
S Machining Clamping system Machine
Profileline Jointing Grooving, rebating Nesting, separation cut Plane milling Circular drilling Plunge cutting Profile cutting Collet Shrinking chuck Hydraulic expansion chuck Machining centre Manual
R L 3 L 2 L 1
L 4
50°
d
D
Design With slight, alternating axial angle
Material
Soft Hard
Coated with
Melamin Veneer HPL
o + + + + ++ +++ +++ ++ + ++
Tool body in steel
D R L1 L2 L3 L4 d S Rhs/ Z BH Tool Order No. Price
mm mm mm mm mm mm mm mm lhs body [PG 8B]
35 4 78 17,9 9,8 5,12 8 25 rhs 2 5 Steel R79-005.350.040.250.1
39 6 82 21,9 14,1 4,91 12 25 rhs 2 5 Steel R79-005.390.060.250.1
