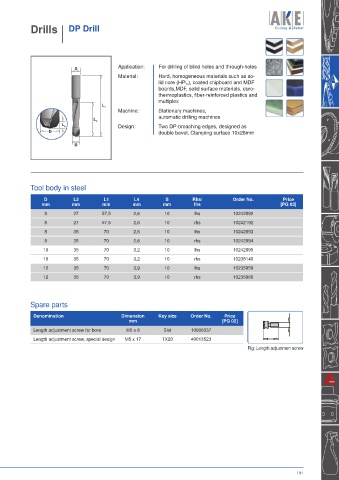

Drills DP Drill

S Application: For drilling of blind holes and through-holes
Material: Hard, homogeneous materials such as so-
lid core (HPL), coated chipboard and MDF
boards,MDF, solid surface materials, duro-
thermoplastics, fiber-reinforced plastics and
multiplex
L 1
Machine: Stationary machines,
automatic drilling machines
L 2
L 4 Design: Two DP-broaching edges, designed as
D double bevel, Clamping surface 10x26mm

D

Tool body in steel

D L2 L1 L4 S Rhs/ Order No. Price
mm mm mm mm mm lhs [PG 03]
8 27 57,5 2,6 10 lhs 10242092
8 27 57,5 2,6 10 rhs 10242192
8 35 70 2,6 10 lhs 10242093
8 35 70 2,6 10 rhs 10242094
10 35 70 3,2 10 lhs 10242095
10 35 70 3,2 10 rhs 10238140
12 35 70 3,9 10 lhs 10235959
12 35 70 3,9 10 rhs 10235960

Spare parts

Denomination Dimension Key size Order No. Price
mm [PG 02]
Length adjustment screw for bore M5 x 8 Slot 10006037
Length adjustment screw, special design M5 x 17 TX20 40013523
Fig: Length adjustmen screw

191
