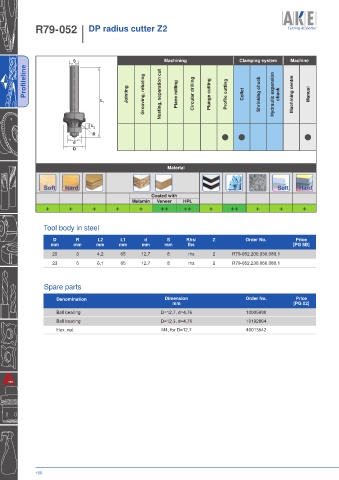

Page 194 - Catalogue_2025+
P. 194
R79-052 DP radius cutter Z2
S Machining Clamping system Machine
Profileline
L 1 Jointing Grooving, rebating Nesting, separation cut Plane milling Circular drilling Plunge cutting Profile cutting Collet Shrinking chuck Hydraulic expansion chuck Machining centre Manual
L 2
R
d
D
Material
Soft Hard
Coated with
Melamin Veneer HPL
+ + + + + ++ ++ + ++ + + +
Tool body in steel
D R L2 L1 d S Rhs/ Z Order No. Price
mm mm mm mm mm mm lhs [PG 8B]
20 3 4,2 65 12,7 8 rhs 2 R79-052.200.030.080.1
23 5 6,1 65 12,7 8 rhs 2 R79-052.230.050.080.1
Spare parts
Denomination Dimension Order No. Price
mm [PG 02]
Ball bearing D=12,7, d=4,76 10005990
Ball bearing D=12,3, d=4,76 10192864
Hex. nut M4, for D=12,7 40013542
