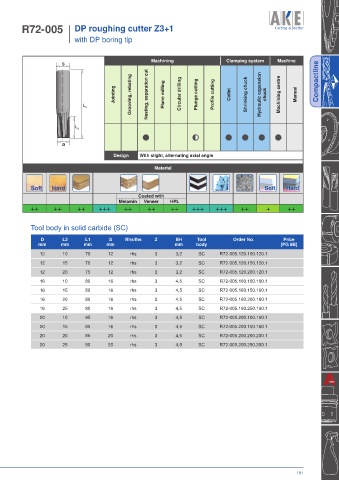

Page 185 - Catalogue_2025+

R72-005 DP roughing cutter Z3+1

with DP boring tip

Machining Clamping system Machine
S

Jointing Grooving, rebating Nesting, separation cut Plane milling Circular drilling Plunge cutting Profile cutting Collet Shrinking chuck Hydraulic expansion chuck Machining centre Manual Compactline

L 1

L 2

D
Design With slight, alternating axial angle

Material

Soft Hard
Coated with
Melamin Veneer HPL
++ ++ ++ +++ ++ ++ ++ +++ +++ ++ + ++

Tool body in solid carbide (SC)

D L2 L1 S Rhs/lhs Z BH Tool Order No. Price
mm mm mm mm mm body [PG 8B]
12 10 70 12 rhs 3 3,2 SC R72-005.120.100.120.1
12 15 70 12 rhs 3 3,2 SC R72-005.120.150.120.1
12 20 75 12 rhs 3 3,2 SC R72-005.120.200.120.1
16 10 80 16 rhs 3 4,5 SC R72-005.160.100.160.1
16 15 80 16 rhs 3 4,5 SC R72-005.160.150.160.1
16 20 80 16 rhs 3 4,5 SC R72-005.160.200.160.1
16 25 80 16 rhs 3 4,5 SC R72-005.160.250.160.1
20 10 85 16 rhs 3 4,5 SC R72-005.200.100.160.1
20 15 85 16 rhs 3 4,5 SC R72-005.200.150.160.1
20 20 85 20 rhs 3 4,5 SC R72-005.200.200.200.1
20 25 90 20 rhs 3 4,5 SC R72-005.200.250.200.1
