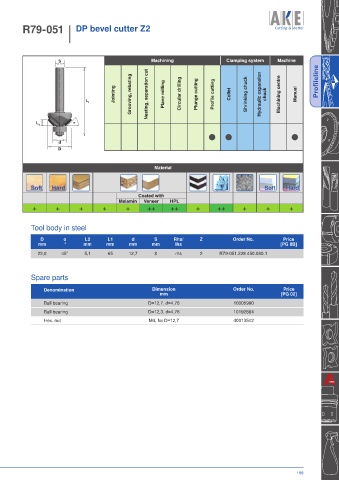

R79-051 DP bevel cutter Z2
S Machining Clamping system Machine
Grooving, rebating Nesting, separation cut Plane milling Circular drilling Plunge cutting Profile cutting Collet Shrinking chuck Hydraulic expansion Machining centre Manual Profileline
Jointing chuck
L 1
L 2 α
d
D
Material
Soft Hard
Coated with
Melamin Veneer HPL
+ + + + + ++ ++ + ++ + + +
Tool body in steel
D α L2 L1 d S Rhs/ Z Order No. Price
mm ° mm mm mm mm lhs [PG 8B]
22,8 45° 5,1 65 12,7 8 rhs 2 R79-051.228.450.080.1
Spare parts
Denomination Dimension Order No. Price
mm [PG 02]
Ball bearing D=12,7, d=4,76 10005990
Ball bearing D=12,3, d=4,76 10192864
Hex. nut M4, for D=12,7 40013542
