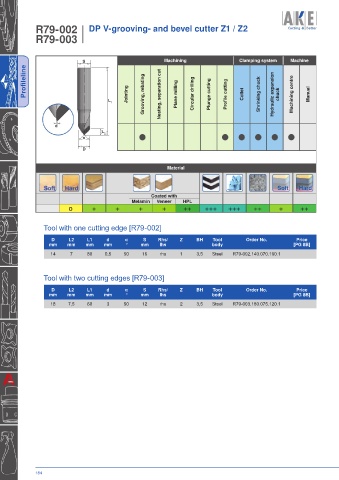

R79-002 DP V-grooving- and bevel cutter Z1 / Z2
R79-003
S Machining Clamping system Machine
Profileline
L 1 Jointing Grooving, rebating Nesting, separation cut Plane milling Circular drilling Plunge cutting Profile cutting Collet Shrinking chuck Hydraulic expansion chuck Machining centre Manual
d
L 2
α
D
Material
Soft Hard
Coated with
Melamin Veneer HPL
o + + + + ++ +++ +++ ++ + ++
Tool with one cutting edge [R79-002]
D L2 L1 d α S Rhs/ Z BH Tool Order No. Price
mm mm mm mm ° mm lhs body [PG 8B]
14 7 80 0,5 90 16 rhs 1 3,5 Steel R79-002.140.070.160.1
Tool with two cutting edges [R79-003]
D L2 L1 d α S Rhs/ Z BH Tool Order No. Price
mm mm mm mm ° mm lhs body [PG 8B]
18 7,5 60 3 90 12 rhs 2 3,5 Steel R79-003.180.075.120.1
