P. 192

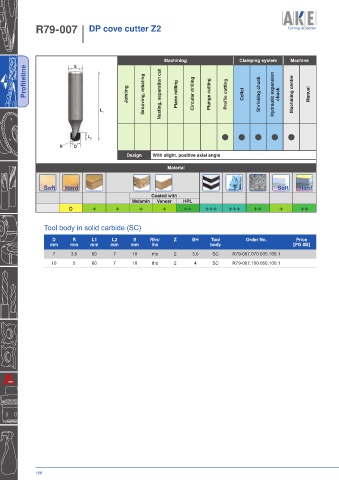

R79-007 DP cove cutter Z2
Machining Clamping system Machine
S
Profileline Jointing Grooving, rebating Nesting, separation cut Plane milling Circular drilling Plunge cutting Profile cutting Collet Shrinking chuck Hydraulic expansion chuck Machining centre Manual
L 1
L 2
R D
Design With slight, positive axial angle
Material
Soft Hard
Coated with
Melamin Veneer HPL
o + + + + ++ +++ +++ ++ + ++
Tool body in solid carbide (SC)
D R L1 L2 S Rhs/ Z BH Tool Order No. Price
mm mm mm mm mm lhs body [PG 8B]
7 3,5 60 7 10 rhs 2 3,5 SC R79-007.070.035.100.1
10 5 60 7 10 rhs 2 4 SC R79-007.100.050.100.1
