P. 191

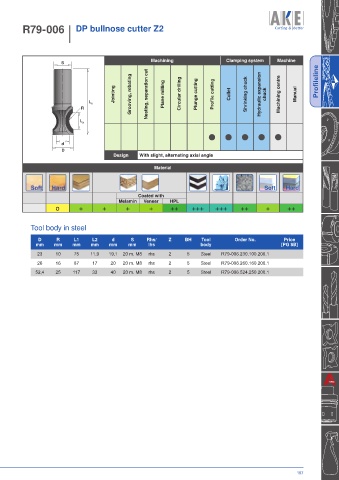

R79-006 DP bullnose cutter Z2
Machining Clamping system Machine
S
Jointing Grooving, rebating Nesting, separation cut Plane milling Circular drilling Plunge cutting Profile cutting Collet Shrinking chuck Hydraulic expansion chuck Machining centre Manual Profileline
L 1
R
L
2
d
D
Design With slight, alternating axial angle
Material
Soft Hard
Coated with
Melamin Veneer HPL
o + + + + ++ +++ +++ ++ + ++
Tool body in steel
D R L1 L2 d S Rhs/ Z BH Tool Order No. Price
mm mm mm mm mm mm lhs body [PG 8B]
23 10 75 11,9 19,1 20 m. M8 rhs 2 5 Steel R79-006.230.100.200.1
26 16 87 17 20 20 m. M8 rhs 2 5 Steel R79-006.260.160.200.1
52,4 25 117 33 40 20 m. M8 rhs 2 5 Steel R79-006.524.250.200.1
