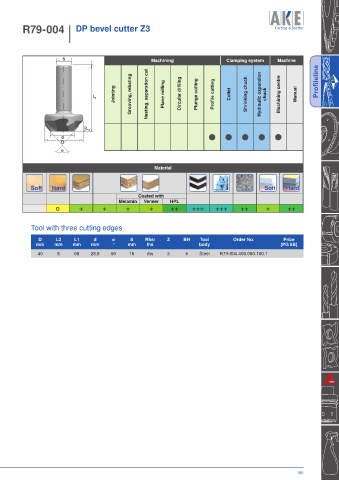

R79-004 DP bevel cutter Z3
S Machining Clamping system Machine
Grooving, rebating Nesting, separation cut Plane milling Circular drilling Plunge cutting Profile cutting Collet Shrinking chuck Hydraulic expansion Machining centre Manual Profileline
Jointing chuck
L
1
L
2
d
D
α
Material
Soft Hard
Coated with
Melamin Veneer HPL
o + + + + ++ +++ +++ ++ + ++
Tool with three cutting edges
D L2 L1 d α S Rhs/ Z BH Tool Order No. Price
mm mm mm mm ° mm lhs body [PG 8B]
40 8 68 28,8 90 16 rhs 3 5 Steel R79-004.400.080.160.1
