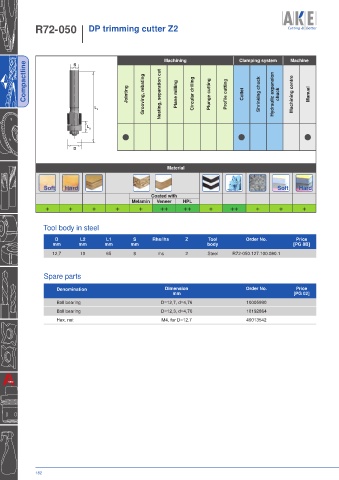

P. 186
R72-050 DP trimming cutter Z2
Machining Clamping system Machine
Compactline Hydraulic expansion
S
L 1 Jointing Grooving, rebating Nesting, separation cut Plane milling Circular drilling Plunge cutting Profile cutting Collet Shrinking chuck chuck Machining centre Manual
L
2
D
Material
Soft Hard
Coated with
Melamin Veneer HPL
+ + + + + ++ ++ + ++ + + +
Tool body in steel
D L2 L1 S Rhs/lhs Z Tool Order No. Price
mm mm mm mm body [PG 8B]
12,7 10 65 8 rhs 2 Steel R72-050.127.100.080.1
Spare parts
Denomination Dimension Order No. Price
mm [PG 02]
Ball bearing D=12,7, d=4,76 10005990
Ball bearing D=12,3, d=4,76 10192864
Hex. nut M4, for D=12,7 40013542
182
