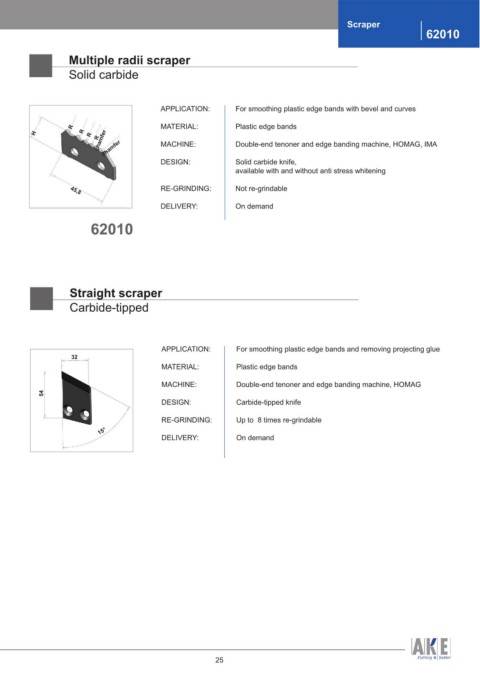

Page 25 - Furniture production_EN_2015
P. 25
Scraper
62010
Multiple radii scraper
Solid carbide
APPLICATION: For smoothing plastic edge bands with bevel and curves
R MATERIAL: Plastic edge bands
chamfer R chamfer MACHINE: Double-end tenoner and edge banding machine, HOMAG, IMA
H R R
DESIGN: Solid carbide knife,
available with and without anti stress whitening
RE-GRINDING: Not re-grindable
45,8
DELIVERY: On demand
62010
Width Height Thickness Radius/bevel DT Quality Order No.
mm mm mm mm
12 20 2 45° ◊ HW 10010909
12 20 2 0,8 ◊ HW 10010889 Straight scraper
12 20 2 1,0 ◊ HW 10010890 Carbide-tipped
12 20 2 1,5 ◊ HW 10041220
12 20 2 2,0 ◊ HW 10040875
12 20 2 2,5 ◊ HW 10010893
12 20 2 3,0 ◊ HW 10010894 APPLICATION: For smoothing plastic edge bands and removing projecting glue
32
12 20 2 3,5 ◊ HW 10010895
MATERIAL: Plastic edge bands
12 20 2 4,0 ◊ HW 10010896
12 20 2 4,5 ◊ HW 10010897 MACHINE: Double-end tenoner and edge banding machine, HOMAG
12 20 2 5,0 ◊ HW 10010898 54
DESIGN: Carbide-tipped knife
RE-GRINDING: Up to 8 times re-grindable
15°
DELIVERY: On demand
Width Height Thickness Radius/bevel DT Quality Order No.
mm mm mm mm
12 20 2 1,5 ◊ HW 10041420
12 20 2 2,0 ◊ HW 10105115
12 20 2 3,0 ◊ HW 10041098
25
