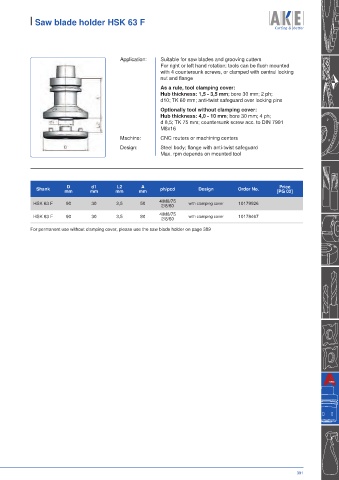

I Saw blade holder HSK 63 F

Application: Suitable for saw blades and grooving cutters
For right or left hand rotation; tools can be flush mounted
with 4 countersunk screws, or clamped with central locking
nut and flange
As a rule, tool clamping cover:
Hub thickness: 1,5 - 3,5 mm; bore 30 mm; 2 ph;
d10; TK 60 mm; anti-twist safeguard over locking pins
Optionally tool without clamping cover:
Hub thickness: 4,0 - 10 mm; bore 30 mm; 4 ph;
d 8,5; TK 75 mm; countersunk screw acc. to DIN 7991
M8x16

Machine: CNC routers or machining centers
Design: Steel body; flange with anti-twist safeguard
Max. rpm depends on mounted tool

Price
d1
D
A
L2
Shank mm mm mm mm ph/pcd Design Order No. [PG 02]
HSK 63 F 90 30 3,5 50 4/M8/75 with clamping cover 10179926
2/8/60
HSK 63 F 90 30 3,5 80 4/M8/75 with clamping cover 10178467
2/8/60
For permanent use without clamping cover, please use the saw blade holder on page 389
