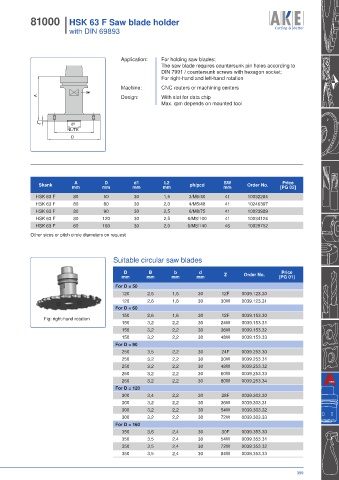

81000 I HSK 63 F Saw blade holder
I with DIN 69893

Application: For holding saw blades;
The saw blade requires countersunk pin holes according to
DIN 7991 / countersunk screws with hexagon socket;
For right-hand and left-hand rotation
Machine: CNC routers or machining centers
SW
A Design: With slot for data chip
Max. rpm depends on mounted tool

L
2 d1
NL/TK
D

d1
SW
L2
D
A
Price
Shank mm mm mm mm ph/pcd mm Order No. [PG 02]
HSK 63 F 80 50 30 1,5 3/M6/40 41 10032284
HSK 63 F 80 60 30 2,0 4/M5/48 41 10246397
HSK 63 F 80 90 30 2,5 6/M8/75 41 10023989
HSK 63 F 80 120 30 2,5 6/M8/100 41 10034124
HSK 63 F 60 160 30 2,0 6/M8/140 46 10029752
Other sizes or pitch circle diameters on request

Suitable circular saw blades

D B b d Price
mm mm mm mm Z Order No. [PG 01]
For D = 50
120 2,6 1,6 30 12F 0039.123.30
120 2,6 1,6 30 30W 0039.123.31
For D = 60
150 2,6 1,6 30 12F 0039.153.30
Fig: right-hand rotation
150 3,2 2,2 30 24W 0039.153.31
150 3,2 2,2 30 36W 0039.153.32
150 3,2 2,2 30 48W 0039.153.33
For D = 90
250 3,5 2,2 30 24F 0039.253.30
250 3,2 2,2 30 30W 0039.253.31
250 3,2 2,2 30 48W 0039.253.32
250 3,2 2,2 30 60W 0039.253.33
250 3,2 2,2 30 80W 0039.253.34
For D = 120
300 3,4 2,2 30 28F 0039.303.30
300 3,2 2,2 30 36W 0039.303.31
300 3,2 2,2 30 54W 0039.303.32
300 3,2 2,2 30 72W 0039.303.33
For D = 160
350 3,6 2,4 30 30F 0039.353.30
350 3,5 2,4 30 54W 0039.353.31
350 3,5 2,4 30 72W 0039.353.32
350 3,5 2,4 30 84W 0039.353.33
