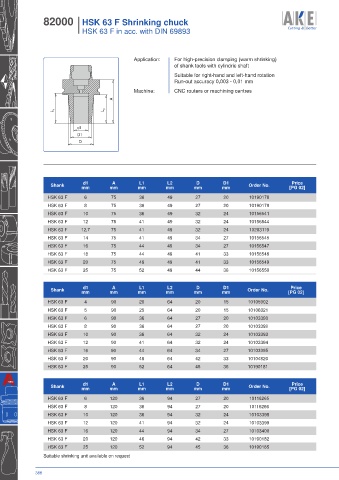

82000 I HSK 63 F Shrinking chuck
I HSK 63 F in acc. with DIN 69893

Application: For high-precision clamping (warm shrinking)
of shank tools with cylindric shaft
Suitable for right-hand and left-hand rotation
Run-out accuracy 0,003 - 0,01 mm
Machine: CNC routers or machining centres
A

L 1 L 2

d1
D1
D

L2
L1
d1
A
Price
D
D1
Shank mm mm mm mm mm mm Order No. [PG 02]
HSK 63 F 6 75 36 49 27 20 10190178
HSK 63 F 8 75 36 49 27 20 10190179
HSK 63 F 10 75 36 49 32 24 10156541
HSK 63 F 12 75 41 49 32 24 10156544
HSK 63 F 12,7 75 41 49 32 24 10203119
HSK 63 F 14 75 41 49 34 27 10156545
HSK 63 F 16 75 44 49 34 27 10156547
HSK 63 F 18 75 44 49 41 33 10156548
HSK 63 F 20 75 46 49 41 33 10156549
HSK 63 F 25 75 52 49 44 36 10156550

L1
D
L2
D1
A
d1
Price
Shank mm mm mm mm mm mm Order No. [PG 02]
HSK 63 F 4 90 20 64 20 15 10105902
HSK 63 F 5 90 25 64 20 15 10106321
HSK 63 F 6 90 36 64 27 20 10103390
HSK 63 F 8 90 36 64 27 20 10103392
HSK 63 F 10 90 36 64 32 24 10103393
HSK 63 F 12 90 41 64 32 24 10103394
HSK 63 F 16 90 44 64 34 27 10103395
HSK 63 F 20 90 46 64 42 33 10104820
HSK 63 F 25 90 52 64 45 36 10190181

D
A
d1
D1
Price
L2
L1
Shank mm mm mm mm mm mm Order No. [PG 02]
HSK 63 F 6 120 36 94 27 20 10116265
HSK 63 F 8 120 36 94 27 20 10116266
HSK 63 F 10 120 36 94 32 24 10103398
HSK 63 F 12 120 41 94 32 24 10103399
HSK 63 F 16 120 44 94 34 27 10103400
HSK 63 F 20 120 46 94 42 33 10190182
HSK 63 F 25 120 52 94 45 36 10190185
Suitable shrinking unit available on request
