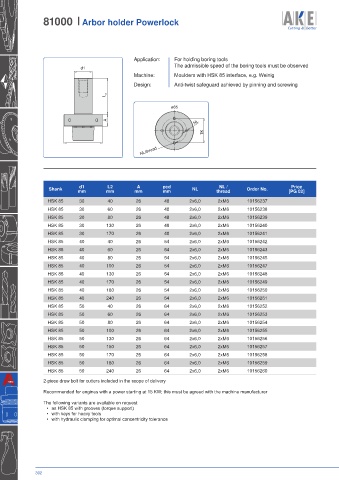

81000 I Arbor holder Powerlock

Application: For holding boring tools
The admissible speed of the boring tools must be observed
d1
Machine: Moulders with HSK 85 interface, e.g. Weinig
Design: Anti-twist safeguard achieved by pinning and screwing
L 2

ø85

A NL
TK

NL/thread

NL /
d1
Price
A
L2
Shank mm mm mm pcd NL thread Order No. [PG 02]
mm
HSK 85 30 40 26 48 2x6,0 2xM6 10156237
HSK 85 30 60 26 48 2x6,0 2xM6 10156238
HSK 85 30 80 26 48 2x6,0 2xM6 10156239
HSK 85 30 130 26 48 2x6,0 2xM6 10156240
HSK 85 30 170 26 48 2x6,0 2xM6 10156241
HSK 85 40 40 26 54 2x6,0 2xM6 10156242
HSK 85 40 60 26 54 2x6,0 2xM6 10156243
HSK 85 40 80 26 54 2x6,0 2xM6 10156245
HSK 85 40 100 26 54 2x6,0 2xM6 10156247
HSK 85 40 130 26 54 2x6,0 2xM6 10156248
HSK 85 40 170 26 54 2x6,0 2xM6 10156249
HSK 85 40 180 26 54 2x6,0 2xM6 10156250
HSK 85 40 240 26 54 2x6,0 2xM6 10156251
HSK 85 50 40 26 64 2x6,0 2xM6 10156252
HSK 85 50 60 26 64 2x6,0 2xM6 10156253
HSK 85 50 80 26 64 2x6,0 2xM6 10156254
HSK 85 50 100 26 64 2x6,0 2xM6 10156255
HSK 85 50 130 26 64 2x6,0 2xM6 10156256
HSK 85 50 150 26 64 2x6,0 2xM6 10156257
HSK 85 50 170 26 64 2x6,0 2xM6 10156258
HSK 85 50 180 26 64 2x6,0 2xM6 10156259
HSK 85 50 240 26 64 2x6,0 2xM6 10156260
2-piece draw bolt for cutters included in the scope of delivery
Recommended for engines with a power starting at 15 KW; this must be agreed with the machine manufacturer

The following variants are available on request
• as HSK 85 with grooves (torque support)
• with keys for heavy tools
• with hydraulic clamping for optimal concentricity tolerance
