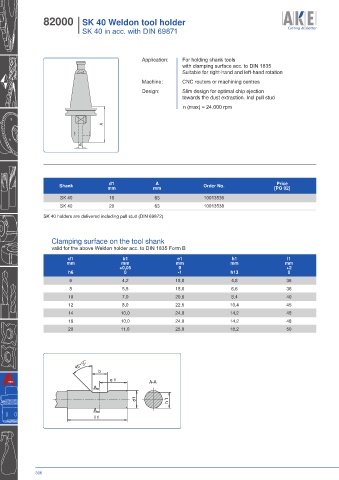

82000 I SK 40 Weldon tool holder
I SK 40 in acc. with DIN 69871

Application: For holding shank tools
with clamping surface acc. to DIN 1835
Suitable for right-hand and left-hand rotation
Machine: CNC routers or machining centres
Design: Slim design for optimal chip ejection
towards the dust extraction. Incl pull stud
n (max) = 24.000 rpm

A

d 1

d1
A
Price
Shank mm mm Order No. [PG 02]
SK 40 16 63 10013536
SK 40 20 63 10013538
SK 40 holders are delivered including pull stud (DIN 69872)

Clamping surface on the tool shank
valid for the above Weldon holder acc. to DIN 1835 Form B
d1 b1 e1 h1 l1
mm mm mm mm mm
+0,05 0 +2
h6 0 -1 h13 0
6 4,2 18,0 4,8 36
8 5,5 18,0 6,6 36
10 7,0 20,0 8,4 40
12 8,0 22,5 10,4 45
14 10,0 24,0 14,2 48
16 10,0 24,0 14,2 48
20 11,0 25,0 18,2 50

+1°
45° 0°
b
e 1 A-A
A

d1 h 1
A
l 1
