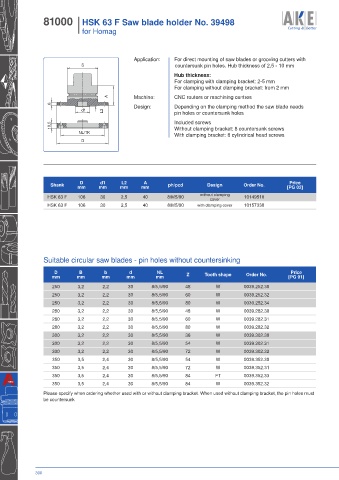

81000 I HSK 63 F Saw blade holder No. 39498
I for Homag

Application: For direct mounting of saw blades or grooving cutters with
S countersunk pin holes. Hub thickness of 2,5 - 10 mm
Hub thickness:
For clamping with clamping bracket: 2-5 mm
For clamping without clamping bracket: from 2 mm

A Machine: CNC routers or machining centres
6 Design: Depending on the clamping method the saw blade needs
d1 L2 pin holes or countersunk holes

10,5 Included screws
Without clamping bracket: 8 countersunk screws
NL/TK With clamping bracket: 8 cylindrical head screws
D

A
d1
L2
Price
D
Shank mm mm mm mm ph/pcd Design Order No. [PG 02]
HSK 63 F 106 30 2,5 40 8/M5/90 without clamping 10149518
cover
HSK 63 F 106 30 2,5 40 8/M5/90 with clamping cover 10157330

Suitable circular saw blades - pin holes without countersinking

D B b d NL Price
mm mm mm mm mm Z Tooth shape Order No. [PG 01]
250 3,2 2,2 30 8/5,5/90 48 W 0039.252.30
250 3,2 2,2 30 8/5,5/90 60 W 0039.252.32
250 3,2 2,2 30 8/5,5/90 80 W 0039.252.34
280 3,2 2,2 30 8/5,5/90 48 W 0039.282.30
280 3,2 2,2 30 8/5,5/90 60 W 0039.282.31
280 3,2 2,2 30 8/5,5/90 80 W 0039.282.32
300 3,2 2,2 30 8/5,5/90 36 W 0039.302.30
300 3,2 2,2 30 8/5,5/90 54 W 0039.302.31
300 3,2 2,2 30 8/5,5/90 72 W 0039.302.32
350 3,5 2,4 30 8/5,5/90 54 W 0039.352.30
350 3,5 2,4 30 8/5,5/90 72 W 0039.352.31
350 3,5 2,4 30 8/5,5/90 84 FT 0039.352.33
350 3,5 2,4 30 8/5,5/90 84 W 0039.352.32

Please specify when ordering whether used with or without clamping bracket. When used without clamping bracket, the pin holes must
be countersunk
