P. 398

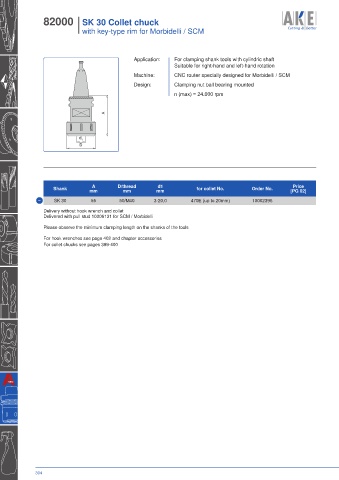

82000 I SK 30 Collet chuck
I with key-type rim for Morbidelli / SCM
Application: For clamping shank tools with cylindric shaft
Suitable for right-hand and left-hand rotation
Machine: CNC router specially designed for Morbidelli / SCM
Design: Clamping nut ball bearing mounted
n (max) = 24.000 rpm
A
d 1
D
A
d1
Price
Shank mm D/thread mm for collet No. Order No. [PG 02]
mm
– SK 30 55 50/M40 3-20,0 470E (up to 20mm) 10002396
Delivery without hook wrench and collet
Delivered with pull stud 10006131 for SCM / Morbidelli
Please observe the minimum clamping length on the shanks of the tools
For hook wrenches see page 402 and chapter accessories
For collet chucks see pages 399-400
