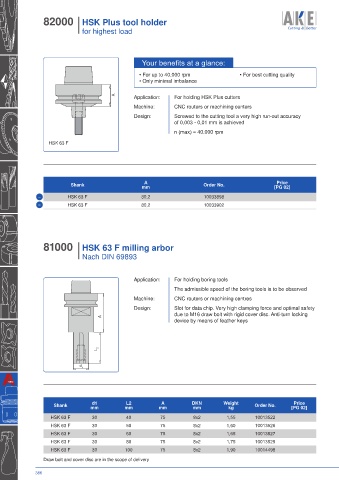

82000 I HSK Plus tool holder
I for highest load

Your benefits at a glance:

• For up to 40.000 rpm • For best cutting quality
• Only minimal imbalance

A Application: For holding HSK Plus cutters

Machine: CNC routers or machining centers
Design: Screwed to the cutting tool a very high run-out accuracy
of 0,003 - 0,01 mm is achieved
n (max) = 40.000 rpm

HSK 63 F

A
Price
Shank mm Order No. [PG 02]
– HSK 63 F 30,2 10033898
– HSK 63 F 80,2 10033902

81000 I HSK 63 F milling arbor
I Nach DIN 69893

Application: For holding boring tools

The admissible speed of the boring tools is to be observed
Machine: CNC routers or machining centres
Design: Slot for data chip. Very high clamping force and optimal safety
due to M16 draw bolt with rigid cover disc. Anti-turn locking
A
device by means of feather keys

L 2

d 1

A
L2
d1
Price
Shank mm mm mm DKN Weight Order No. [PG 02]
mm
kg
HSK 63 F 30 40 75 8x2 1,55 10013522
HSK 63 F 30 50 75 8x2 1,60 10013526
HSK 63 F 30 60 75 8x2 1,65 10013527
HSK 63 F 30 80 75 8x2 1,75 10013529
HSK 63 F 30 100 75 8x2 1,90 10014498
Draw bolt and cover disc are in the scope of delivery

386
