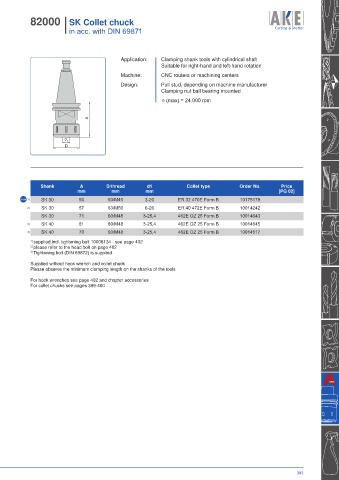

82000 I SK Collet chuck
I in acc. with DIN 69871

Application: Clamping shank tools with cylindrical shaft
Suitable for right-hand and left-hand rotation
Machine: CNC routers or machining centers
Design: Pull stud, depending on machine manufacturer
Clamping nut ball bearing mounted
n (max) = 24.000 rpm

A

d 1
D

Shank A D/thread d1 Collet type Order No. Price
mm mm mm [PG 02]
new 1) SK 30 50 50/M40 3-20 ER 32 470E Form B 10175179

2) SK 30 57 63/M50 6-26 ER 40 472E Form B 10014242
SK 30 71 60/M48 3-25,4 462E OZ 25 Form B 10014643
SK 40 81 60/M48 3-25,4 462E OZ 25 Form B 10014645
3)
3) SK 40 70 60/M48 3-25,4 462E OZ 25 Form B 10014517
1) supplied incl. tightening bolt 10006134 - see page 402
2) please refer to the head bolt on page 402
3) Tightening bolt (DIN 69872) is supplied
Supplied without hook wrench and collet chuck
Please observe the minimum clamping length on the shanks of the tools

For hook wrenches see page 402 and chapter accessories
For collet chucks see pages 399-400
