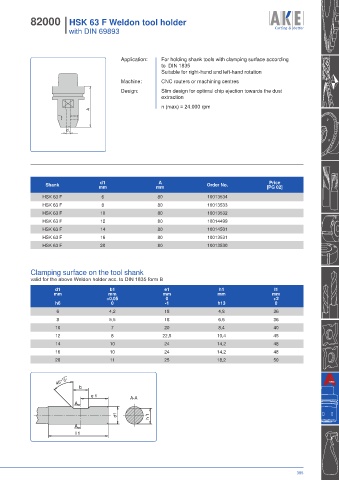

82000 I HSK 63 F Weldon tool holder
I with DIN 69893

Application: For holding shank tools with clamping surface according
to DIN 1835
Suitable for right-hand and left-hand rotation
Machine: CNC routers or machining centres
Design: Slim design for optimal chip ejection towards the dust
extraction

n (max) = 24.000 rpm
A

d 1

d1
A
Price
Shank mm mm Order No. [PG 02]
HSK 63 F 6 80 10013534
HSK 63 F 8 80 10013533
HSK 63 F 10 80 10013532
HSK 63 F 12 80 10014499
HSK 63 F 14 80 10014501
HSK 63 F 16 80 10013531
HSK 63 F 20 80 10013530

Clamping surface on the tool shank
valid for the above Weldon holder acc. to DIN 1835 form B

d1 b1 e1 h1 l1
mm mm mm mm mm
+0,05 0 +2
h6 0 -1 h13 0
6 4,2 18 4,8 36
8 5,5 18 6,6 36
10 7 20 8,4 40
12 8 22,5 10,4 45
14 10 24 14,2 48
16 10 24 14,2 48
20 11 25 18,2 50

+1°
45° 0°
b
e 1 A-A
A
d1 h 1

A
l 1

385
