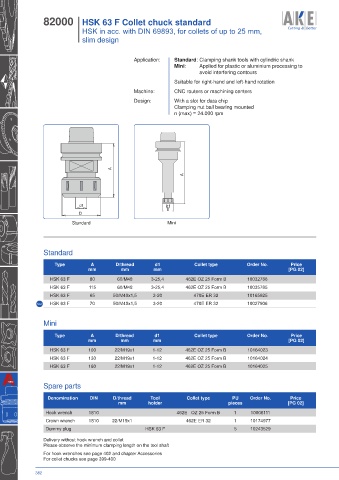

82000 I HSK 63 F Collet chuck standard
I HSK in acc. with DIN 69893, for collets of up to 25 mm,
I slim design

Application: Standard: Clamping shank tools with cylindric shank
Mini: Applied for plastic or aluminium processing to
avoid interfering contours
Suitable for right-hand and left-hand rotation
Machine: CNC routers or machining centers
Design: With a slot for data chip
Clamping nut ball bearing mounted
n (max) = 24.000 rpm

A
A

d1 d1
D
D
Standard Mini

Standard

Type A D/thread d1 Collet type Order No. Price
mm mm mm [PG 02]
HSK 63 F 80 60/M48 3-25,4 462E OZ 25 Form B 10032786
HSK 63 F 115 60/M48 3-25,4 462E OZ 25 Form B 10035785
HSK 63 F 65 50/M40x1,5 3-20 470E ER 32 10165925
new HSK 63 F 70 50/M40x1,5 3-20 470E ER 32 10027906

Mini

Type A D/thread d1 Collet type Order No. Price
mm mm mm [PG 02]
HSK 63 F 100 22/M19x1 1-12 462E OZ 25 Form B 10164023
HSK 63 F 130 22/M19x1 1-12 462E OZ 25 Form B 10164024
HSK 63 F 160 22/M19x1 1-12 462E OZ 25 Form B 10164025

Spare parts
Denomination DIN D/thread Tool Collet type PU Order No. Price
mm holder pieces [PG 02]
Hook wrench 1810 462E OZ 25 Form B 1 10006111
Crown wrench 1810 22/M19x1 462E ER 32 1 10174977
Dummy plug HSK 63 F 5 10243529

Delivery without hook wrench and collet
Please observe the minimum clamping length on the tool shaft
For hook wrenches see page 402 and chapter Accessories
For collet chucks see page 399-400
