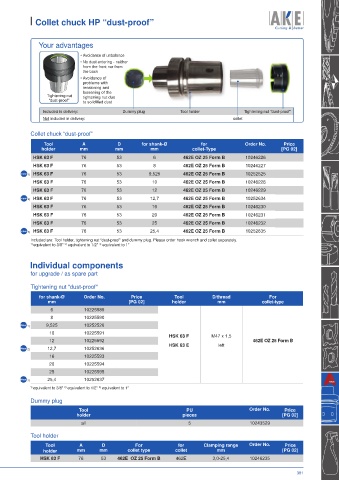

I Collet chuck HP “dust-proof”

Your advantages

• Avoidance of unbalance
• No dust entering - neither
from the front nor from
the back
• Avoidance of
problems with
tensioning and
loosening of the
Tightening nut tightening nut due
“dust-proof” to solidified dust
Included in delivery: Dummy plug Tool holder Tightening nut “dust-proof”
Not included in delivery: collet

Collet chuck “dust-proof”

Tool A D for shank-Ø for Order No. Price
holder mm mm mm collet-Type [PG 02]
HSK 63 F 76 53 6 462E OZ 25 Form B 10246226
HSK 63 F 76 53 8 462E OZ 25 Form B 10246227
new 1) HSK 63 F 76 53 9,525 462E OZ 25 Form B 10252525
HSK 63 F 76 53 10 462E OZ 25 Form B 10246228
HSK 63 F 76 53 12 462E OZ 25 Form B 10246229
new 2) HSK 63 F 76 53 12,7 462E OZ 25 Form B 10252634
HSK 63 F 76 53 16 462E OZ 25 Form B 10246230
Safety tip: HSK 63 F 76 53 20 462E OZ 25 Form B 10246231
• Only use cylindrical shanks HSK 63 F 76 53 25 462E OZ 25 Form B 10246232
• Only use tools with shank tolerance „h7“ or better new 3) HSK 63 F 76 53 25,4 462E OZ 25 Form B 10252635
• Only use collet chucks with tolerance 15 µm or better
Included are: Tool holder, tightening nut “dust-proof” and dummy plug. Please order hook wrench and collet separately.
2)
3)
1) equivalent to 3/8" equivalent to 1/2" equivalent to 1"
Individual components
for upgrade / as spare part

Tightening nut "dust-proof"
for shank-Ø Order No. Price Tool D/thread For
mm [PG 02] holder mm collet-type
6 10225589
8 10225590
New 1) 9,525 10252526
10 10225591 HSK 63 F M47 x 1,5
12 10225592 462E OZ 25 Form B
HSK 63 E left
New 2) 12,7 10252636
16 10225593
20 10225594
25 10225595
25,4 10252637
New 3)
3)
1) equivalent to 3/8" equivalent to 1/2" equivalent to 1"
2)
Dummy plug
Tool PU Order No. Price
holder pieces [PG 02]
all 5 10243529

Tool holder
Tool A D For for Clamping range Order No. Price
holder mm mm collet type collet mm [PG 02]
HSK 63 F 76 53 462E OZ 25 Form B 462E 3,0-25,4 10246235
