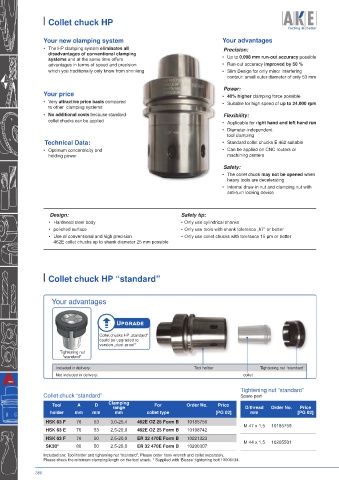

I Collet chuck HP

Your new clamping system Your advantages
• The HP clamping system eliminates all Precision:
disadvantages of conventional clamping
systems and at the same time offers • Up to 0,008 mm run-out accuracy possible
advantages in terms of speed and precision • Run-out accuracy improved by 50 %
which you traditionally only know from shrinking • Slim Design for only minor interfering
contour: small outer diameter of only 53 mm

Power:
Your price • 40% higher clamping force possible
• Very attractive price basis compared • Suitable for high speed of up to 24,000 rpm
to other clamping systems
• No additional costs because standard Flexibility:
collet chucks can be applied • Applicable for right hand and left hand run
• Diameter-independent
tool clamping
Technical Data: • Standard collet chucks E 462 suitable
• Optimum concentricity and • Can be applied on CNC routers or
holding power machining centers
Safety:
• The collet chuck may not be opened when
heavy tools are decelerating
• Internal draw-in nut and clamping nut with
anti-turn locking device

Design: Safety tip:
• Hardened steel body • Only use cylindrical shanks
• polished surface • Only use tools with shank tolerance „h7“ or better
• Use of conventional and high precision • Only use collet chucks with tolerance 15 µm or better
462E collet chucks up to shank diameter 25 mm possible

I Collet chuck HP “standard”

Your advantages

Upgrade

Collet chucks HP „standard“
could be upgraded to
version „dust-proof“
Tightening nut
“standard”
Included in delivery: Tool holder Tightening nut “standard”
Not included in delivery: collet

Tightening nut “standard”
Collet chuck “standard” Spare part
Tool A D Clamping For Order No. Price D/thread Order No. Price
range
holder mm mm mm collet type [PG 02] mm [PG 02]
HSK 63 F 76 53 3,0-25,4 462E OZ 25 Form B 10185756
HSK 63 E 76 53 2,5-20,0 462E OZ 25 Form B 10198742 M 47 x 1,5 10185759
HSK 63 F 76 50 2,5-20,0 ER 32 470E Form B 10221323 M 44 x 1,5 10205501
SK30* 80 50 2,5-20,0 ER 32 470E Form B 10200307
Included are: Tool holder and tightening nut “standard”. Please order hook wrench and collet separately.
Please check the minimum clamping length on the tool shank. * Supplied with ‘Biesse’ tightening bolt 10006134.
