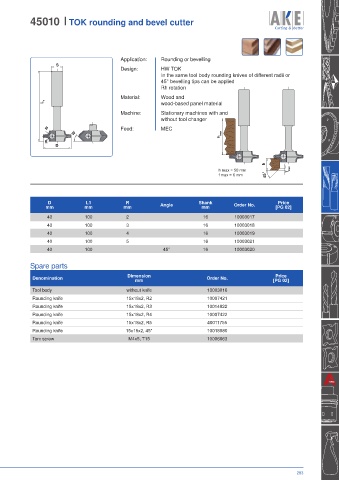

45010 I TOK rounding and bevel cutter

Application: Rounding or bevelling
S
Design: HW TOK
In the same tool body rounding knives of different radii or
45° bevelling tips can be applied
Rh rotation
Material: Wood and
L 1 wood-based panel material
Machine: Stationary machines with and
without tool changer

R Feed: MEC
W h max
R
D

h
h max = 50 mm f max
f max = 6 mm 45°

D L1 R Shank Price
mm mm mm Angle mm Order No. [PG 02]
40 100 2 16 10003017
40 100 3 16 10003018
40 100 4 16 10003019
40 100 5 16 10003021
40 100 45° 16 10003020

Spare parts

Price
Denomination Dimension Order No. [PG 02]
mm
Tool body without knife 10003016
Rounding knife 15x18x2, R2 10007421
Rounding knife 15x18x2, R3 10014922
Rounding knife 15x18x2, R4 10007422
Rounding knife 15x18x2, R5 40011755
Rounding knife 15x18x2, 45° 10018580
Torx screw M4x5, T15 10006063
