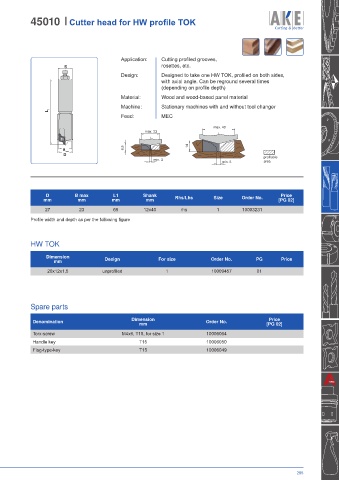

45010 I Cutter head for HW profile TOK

Application: Rounding or bevelling Application: Cutting profiled grooves,
on both sides S rosettes, etc.
Design: Tool body with two exchangeable HW knives, Design: Designed to take one HW TOK, profiled on both sides,
moveable towards each other, optionally for rounding with axial angle. Can be reground several times
or bevelling applications, on the same tool body, (depending on profile depth)
size 1 or size 2, either rounding knives or 45° bevelling
knives can be used alternatively Material: Wood and wood-based panel material
Machine: Stationary machines with and without tool changer
Material: Wood and wood-based panel material L 1
Machine: Stationary machines with and without tool changer Feed: MEC
Feed: MEC max. 40
max. 23

6,5 14
B max
D
min. 3 profilable
min. 5 area

D B max L1 Shank Price
mm mm mm mm Rhs/Lhs Size Order No. [PG 02]
27 23 69 12x40 rhs 1 10003231
Profile width and depth as per the following figure

HW TOK

Dimension Design For size Order No. PG Price
mm
20x12x1,5 unprofiled 1 10009457 01

Spare parts

Price
Denomination Dimension Order No. [PG 02]
mm
Torx-screw M4x6, T15, for size 1 10006064
Handle key T15 10006050
Flag-type-key T15 10006049
