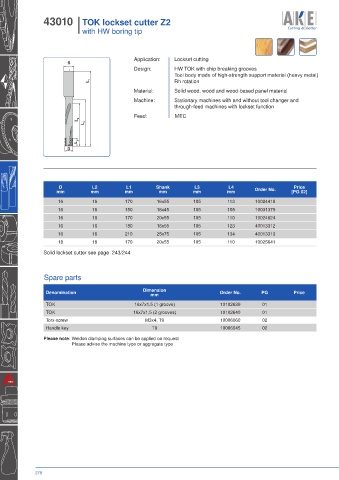

43010 I TOK lockset cutter Z2
I with HW boring tip
Application: Lockset cutting
S
Design: HW TOK with chip breaking grooves
Tool body made of high-strength support material (heavy metal)
L 1 Rh rotation
Material: Solid wood, wood and wood-based panel material
Machine: Stationary machines with and without tool changer and
through-feed machines with lockset function
Feed: MEC
L 3
L 4
L 2
D
D L2 L1 Shank L3 L4 Price
mm mm mm mm mm mm Order No. [PG 02]
16 16 170 16x55 105 113 10024418
16 16 150 16x45 105 105 10031379
16 16 170 20x55 105 110 10024624
16 16 180 16x55 105 123 40013312
16 16 210 25x75 105 134 40013313
18 16 170 20x55 105 110 10025641
Solid lockset cutter see page 243/244
Spare parts
Denomination Dimension Order No. PG Price
mm
TOK 16x7x1,5 (1 groove) 10102639 01
TOK 16x7x1,5 (2 grooves) 10102640 01
Torx-screw M3x4, T9 10006060 02
Handle key T9 10006045 02
Please note: Weldon clamping surfaces can be applied on request
Please advise the machine type or aggregate type
