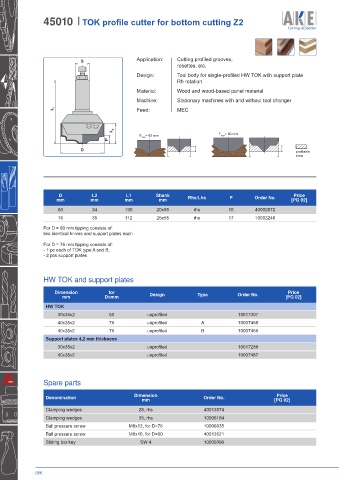

45010 I TOK profile cutter for bottom cutting Z2

S Application: Cutting profiled grooves,
rosettes, etc.
Design: Tool body for single-profiled HW TOK with support plate
Rh rotation
Material: Wood and wood-based panel material
Machine: Stationary machines with and without tool changer
L 1 Feed: MEC

L 2
F max = 60 mm F max = 80 mm
P
D profilable
area

D L2 L1 Shank Price
mm mm mm mm Rhs/Lhs P Order No. [PG 02]
60 34 105 20x55 rhs 15 40002572
76 35 112 25x55 rhs 17 10003246
For D = 60 mm tipping consists of:
two identical knives and support plates each

For D = 76 mm tipping consists of:
- 1 pc each of TOK type A and B,
- 2 pcs support plates

HW TOK and support plates

Dimension for Design Type Order No. Price
mm D=mm [PG 02]
HW TOK
30x35x2 60 unprofiled 10017307
40x36x2 76 unprofiled A 10007465
40x36x2 76 unprofiled B 10007466
Support plates 4,2 mm thickness
30x35x2 unprofiled 10017288
40x36x2 unprofiled 10007487

Spare parts

Price
Denomination Dimension Order No. [PG 02]
mm
Clamping wedges 28, rhs 40013574
Clamping wedges 35, rhs 10006184
Ball pressure screw M8x12, for D=76 10006035
Ball pressure screw M6x10, for D=60 40013521
Sliding bar key SW 4 10006096
