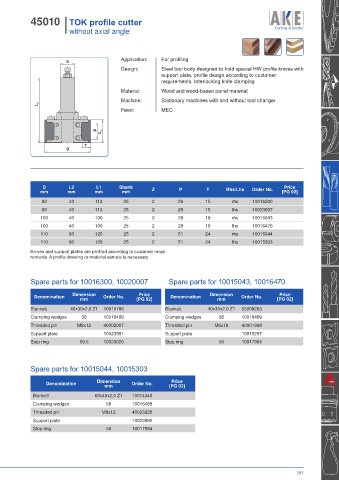

45010 I TOK profile cutter
I without axial angle

Application: For profiling
S
Design: Steel tool body designed to hold special HW profile knives with
support plate, profile design according to customer
requirements. Interlocking knife clamping
Material: Wood and wood-based panel material
Machine: Stationary machines with and without tool changer
L 1
Feed: MEC

P
L 2
T
D

D L2 L1 Shank Price
mm mm mm mm Z P T Rhs/Lhs Order No. [PG 02]

80 40 113 25 2 29 15 rhs 10016300
80 40 113 25 2 29 15 lhs 10020007
100 40 100 25 2 29 19 rhs 10015043
100 40 100 25 2 29 19 lhs 10016470
110 60 120 25 2 51 24 rhs 10015044
110 60 120 25 2 51 24 lhs 10015303
Knives and support plates are profiled according to customer requi-
rements. A profile drawing or material sample is necessary.

Spare parts for 10016300, 10020007 Spare parts for 10015043, 10016470

Price
Price
Denomination Dimension Order No. [PG 02] Denomination Dimension Order No. [PG 02]
mm
mm
Blankett 40x30x2,0 Z1 10015786 Blankett 40x35x2,0 Z1 33009263
Clamping wedges 38 10016489 Clamping wedges 38 10016489
Threaded pin M8x12 40002007 Threaded pin M6x16 40001998
Support plate 10023991 Support plate 10019297
Stop ring 69,5 10020020 Stop ring 56 10017984

Spare parts for 10015044, 10015303

Price
Denomination Dimension Order No. [PG 02]
mm
Blankett 60x40x2,0 Z1 10014340
Clamping wedges 58 10016488
Threaded pin M8x12 40003228
Support plate 10023992
Stop ring 56 10017984
